NETGEAR EAX15 v2

The NETGEAR EAX15v2 belongs to EAX series (EAX12, EAX11v2, EAX15v2) wall-plug 802.11ax (Wi-Fi 6) extenders that share the SoC, WiFi chip, and image format with the WAX202.

→ Install OpenWrt (generic explanation)

Flash the factory image through the stock web interface.

cat /proc/mtd

dev:    size   erasesize  name
mtd0: 00080000 00020000 "Bootloader"
mtd1: 00080000 00020000 "Config"
mtd2: 00080000 00020000 "Factory"
mtd3: 03800000 00020000 "firmware"
mtd4: 00400000 00020000 "kernel"
mtd5: 03400000 00020000 "ubi"
mtd6: 03800000 00020000 "firmware_backup"
mtd7: 00200000 00020000 "CFG"
mtd8: 00600000 00020000 "RAE"
mtd9: 00020000 00020000 "POT"
mtd10: 00040000 00020000 "LOG"

→ generic.sysupgrade

Browse to http://192.168.1.1/cgi-bin/luci/mini/system/upgrade/ LuCI Upgrade URL
Upload image file for sysupgrade to LuCI
Wait for reboot

If you don't have a GUI (LuCI) available, you can alternatively upgrade via the command line. There are two command line methods for upgrading:

sysupgrade
mtd

Note: It is important that you put the firmware image into the ramdisk (/tmp) before you start flashing.

sysupgrade

Login as root via SSH on 192.168.1.1, then enter the following commands:

cd /tmp
wget https://downloads.openwrt.org/releases/23.05.5/targets/ramips/mt7621/openwrt-23.05.5-ramips-mt7621-netgear_eax12-squashfs-sysupgrade.bin
sysupgrade /tmp/xxx.abc

→ generic.debrick

→ failsafe_and_factory_reset

→ Basic configuration After flashing, proceed with this.
Set up your Internet connection, configure wireless, configure USB port, etc.

The default network configuration is:

Interface Name	Description	Default configuration
br-lan	LAN & WiFi	192.168.1.1/24
eth0	LAN port
phy1-ap0	WiFi	Disabled

→ hardware.button on howto use and configure the hardware button(s).

The Netgear EAX15v2 has the following buttons:

BUTTON	Event
Reset	reset
WPS	wps

The pictures below are from North American version of the device. (120v Mains)

Rear Case:

Front Case:

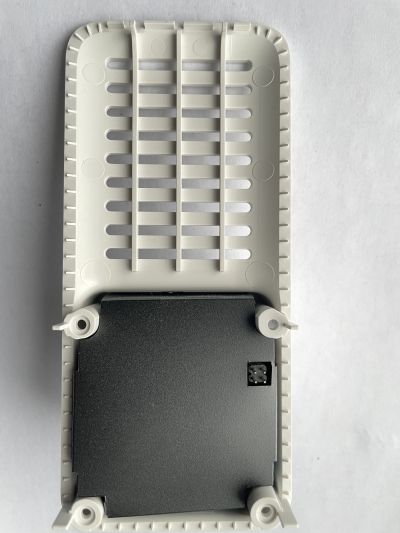

Power Supply:

Power Supply Board:

→ Warranty

The rear-cover is secured to the front with four T8 screws (highlighted in red circle) and are hiding behind the spec label.
The covers are also linked with 4 power supply pins. It removes with ease, but needs care when placing them together for proper alignment.
In addition, the main board is secured to the front case using a single T8 screw. The main board releases with ease as soon this is removed.

Main Board Front:

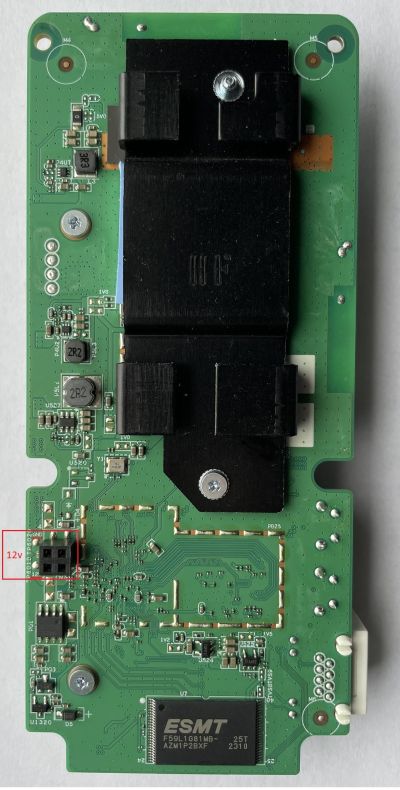

Main Board Rear:

For connecting just three pins/wires are sufficient. RX, TX & GND. (3.3 v pin is not required). Points for connecting serial port is highlighted in the mainboard picture.

Serial parameters	115200, 8N1, 3.3V

U-Boot SPL 2018.09-20210825 (Aug 25 2021 - 16:51:25 +0800) Trying to boot from NAND U-Boot 2018.09-20210825 (Aug 25 2021 - 16:51:25 +0800) CPU: MediaTek MT7621AT ver 1, eco 3 Clocks: CPU: 880MHz, DDR: 1200MHz, Bus: 220MHz, XTAL: 40MHz Model: MediaTek MT7621 reference board (NAND) DRAM: 256 MiB NAND: 128 MiB Loading Environment from NAND... OK In: uartlite0@1e000c00 Out: uartlite0@1e000c00 Err: uartlite0@1e000c00 Net: eth0: eth@1e100000 nmrp activated nmrp listen timeout. nmrp Nmrp_cleanup. Hit any key to stop autoboot: 0 [?25l[2J[1;1H[1;1H[2K[2;1H *** U-Boot Boot Menu ***[0K[3;1H[2K[11;1H[2K[12;1H Press UP/DOWN to move, ENTER to select[0K[13;1H[2K[4;1H [7m1. Startup system (Default)[0m[5;1H 2. Upgrade firmware[6;1H 3. Upgrade bootloader[7;1H 4. Upgrade bootloader (advanced mode)[8;1H 5. Load image[9;1H 0. U-Boot console[11;1H Hit any key to stop autoboot: 1 0 [11;1H[2K[?25h[2J[1;1H Starting dual image checking ... Verifying main image at 0x180000 ... ## Checking hash(es) for FIT Image at 80020000 ... Hash(es) for Image 0 (kernel@1): crc32+ sha1+ Hash(es) for Image 1 (fdt@1): crc32+ sha1+ Verifying rootfs ... Verifying backup image at 0x3980000 ... ## Checking hash(es) for FIT Image at 80e20000 ... Hash(es) for Image 0 (kernel@1): crc32+ sha1+ Hash(es) for Image 1 (fdt@1): crc32+ sha1+ Verifying rootfs ... Passed Loading from nand0, offset 0x180000 Fit image detected... FIT description: MIPS OpenWrt FIT (Flattened Image Tree) Image 0 (kernel@1) Description: MIPS OpenWrt Linux-4.4.198 Type: Kernel Image Compression: lzma compressed Data Start: 0x800100e4 Data Size: 3552510 Bytes = 3.4 MiB Architecture: MIPS OS: Linux Load Address: 0x81001000 Entry Point: 0x81001000 Hash algo: crc32 Hash value: 295f65b1 Hash algo: sha1 Hash value: 17ef2c2a8d5614c273ac7e1bac974cdf0c61583d Image 1 (fdt@1) Description: MIPS OpenWrt mt7621-rfb-ax-nand device tree blob Type: Flat Device Tree Compression: uncompressed Data Start: 0x80373728 Data Size: 12182 Bytes = 11.9 KiB Architecture: MIPS Hash algo: crc32 Hash value: d92ae95b Hash algo: sha1 Hash value: 85827ce3fd8efff78168791d0dbbaa6a2d5bbd19 Configuration 0 (config@1) Description: OpenWrt Kernel: kernel@1 FDT: fdt@1 Automatic boot of image at addr 0x80010000 ... ## Loading kernel from FIT Image at 80010000 ... Using 'config@1' configuration Trying 'kernel@1' kernel subimage Description: MIPS OpenWrt Linux-4.4.198 Type: Kernel Image Compression: lzma compressed Data Start: 0x800100e4 Data Size: 3552510 Bytes = 3.4 MiB Architecture: MIPS OS: Linux Load Address: 0x81001000 Entry Point: 0x81001000 Hash algo: crc32 Hash value: 295f65b1 Hash algo: sha1 Hash value: 17ef2c2a8d5614c273ac7e1bac974cdf0c61583d Verifying Hash Integrity ... crc32+ sha1+ OK ## Loading fdt from FIT Image at 80010000 ... Using 'config@1' configuration Trying 'fdt@1' fdt subimage Description: MIPS OpenWrt mt7621-rfb-ax-nand device tree blob Type: Flat Device Tree Compression: uncompressed Data Start: 0x80373728 Data Size: 12182 Bytes = 11.9 KiB Architecture: MIPS Hash algo: crc32 Hash value: d92ae95b Hash algo: sha1 Hash value: 85827ce3fd8efff78168791d0dbbaa6a2d5bbd19 Verifying Hash Integrity ... crc32+ sha1+ OK Booting using the fdt blob at 0x80373728 Uncompressing Kernel Image ... OK Loading Device Tree to 8fe77000, end 8fe7cf95 ... OK [ 0.000000] Linux version 4.4.198 (shizhen@U18-1922) (gcc version 7.5.0 (OpenWrt GCC 7.5.0 r0-9f1e7f149) ) #0 SMP Wed Jan 8 17:00:18 CST 2025 [ 0.000000] SoC Type: MediaTek MT7621 ver:1 eco:3 [ 0.000000] bootconsole [early0] enabled [ 0.000000] CPU0 revision is: 0001992f (MIPS 1004Kc) [ 0.000000] MIPS: machine is MediaTek MT7621 RFB (802.11ax,NAND) [ 0.000000] Determined physical RAM map: [ 0.000000] memory: 10000000 @ 00000000 (usable) [ 0.000000] Initrd not found or empty - disabling initrd [ 0.000000] Zone ranges: [ 0.000000] DMA [mem 0x0000000000000000-0x0000000000ffffff] [ 0.000000] Normal [mem 0x0000000001000000-0x000000000fffffff] [ 0.000000] Movable zone start for each node [ 0.000000] Early memory node ranges [ 0.000000] node 0: [mem 0x0000000000000000-0x000000000fffffff] [ 0.000000] Initmem setup node 0 [mem 0x0000000000000000-0x000000000fffffff] [ 0.000000] On node 0 totalpages: 65536 [ 0.000000] free_area_init_node: node 0, pgdat 818e7580, node_mem_map 8211a000 [ 0.000000] DMA zone: 32 pages used for memmap [ 0.000000] DMA zone: 0 pages reserved [ 0.000000] DMA zone: 4096 pages, LIFO batch:0 [ 0.000000] Normal zone: 480 pages used for memmap [ 0.000000] Normal zone: 61440 pages, LIFO batch:15 [ 0.000000] VPE topology {2,2} total 4 [ 0.000000] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes. [ 0.000000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes [ 0.000000] MIPS secondary cache 256kB, 8-way, linesize 32 bytes. [ 0.000000] PERCPU: Embedded 10 pages/cpu @8232c000 s8544 r8192 d24224 u40960 [ 0.000000] pcpu-alloc: s8544 r8192 d24224 u40960 alloc=10*4096 [ 0.000000] pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3 [ 0.000000] Built 1 zonelists in Zone order, mobility grouping on. Total pages: 65024 [ 0.000000] Kernel command line: console=ttyS0,115200 slub_debug=- loglevel=8 mtdoops.mtddev=LOG mtdoops.record_size=16384 uboot=1 rootfstype=squashfs,jffs2 [ 0.000000] log_buf_len individual max cpu contribution: 1048576 bytes [ 0.000000] log_buf_len total cpu_extra contributions: 3145728 bytes [ 0.000000] log_buf_len min size: 4194304 bytes [ 0.000000] log_buf_len: 8388608 bytes [ 0.000000] early log buf free: 4191952(99%) [ 0.000000] PID hash table entries: 1024 (order: 0, 4096 bytes) [ 0.000000] Dentry cache hash table entries: 32768 (order: 5, 131072 bytes) [ 0.000000] Inode-cache hash table entries: 16384 (order: 4, 65536 bytes) [ 0.000000] Writing ErrCtl register=00046000 [ 0.000000] Readback ErrCtl register=00046000 [ 0.000000] Memory: 233944K/262144K available (7327K kernel code, 4061K rwdata, 1712K rodata, 200K init, 4190K bss, 28200K reserved, 0K cma-reserved) [ 0.000000] SLUB: HWalign=32, Order=0-3, MinObjects=0, CPUs=4, Nodes=1 [ 0.000000] Hierarchical RCU implementation. [ 0.000000] NR_IRQS:256 [ 0.000000] clocksource: GIC: mask: 0xffffffffffffffff max_cycles: 0xcaf478abb4, max_idle_ns: 440795247997 ns [ 0.000000] clocksource: MIPS: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 4343773742 ns [ 0.000008] sched_clock: 32 bits at 440MHz, resolution 2ns, wraps every 4880645118ns [ 0.007779] Calibrating delay loop... 586.13 BogoMIPS (lpj=2930688) [ 0.070408] pid_max: default: 32768 minimum: 301 [ 0.075130] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes) [ 0.081655] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes) [ 0.861926] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes. [ 0.861936] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes [ 0.861947] MIPS secondary cache 256kB, 8-way, linesize 32 bytes. [ 0.862092] CPU1 revision is: 0001992f (MIPS 1004Kc) [ 0.177597] Synchronize counters for CPU 1: done. [ 0.545024] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes. [ 0.545031] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes [ 0.545037] MIPS secondary cache 256kB, 8-way, linesize 32 bytes. [ 0.545107] CPU2 revision is: 0001992f (MIPS 1004Kc) [ 0.267956] Synchronize counters for CPU 2: done. [ 0.635117] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes. [ 0.635124] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes [ 0.635130] MIPS secondary cache 256kB, 8-way, linesize 32 bytes. [ 0.635210] CPU3 revision is: 0001992f (MIPS 1004Kc) [ 0.353134] Synchronize counters for CPU 3: done. [ 0.357866] Brought up 4 CPUs [ 0.365870] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns [ 0.375666] futex hash table entries: 1024 (order: 3, 32768 bytes) [ 0.381951] pinctrl core: initialized pinctrl subsystem [ 0.387702] NET: Registered protocol family 16 [ 0.400135] FPU Affinity set after 11720 emulations [ 0.427489] mt7621_gpio 1e000600.gpio: registering 32 gpios [ 0.433141] mt7621_gpio 1e000600.gpio: registering 32 gpios [ 0.438729] mt7621_gpio 1e000600.gpio: registering 32 gpios [ 0.444960] mt7621-pci 1e140000.pcie: Failed to get gpio for PCIe1 [ 0.451073] mt7621-pci 1e140000.pcie: Failed to get gpio for PCIe2 [ 0.657560] PCIe port 2 link down [ 0.660792] PCI coherence region base: 0x60000000, mask/settings: 0xf0000002 [ 0.700620] PCI host bridge to bus 0000:00 [ 0.704655] pci_bus 0000:00: root bus resource [mem 0x60000000-0x6fffffff] [ 0.711505] pci_bus 0000:00: root bus resource [io 0x1e160000-0x1e16ffff] [ 0.718295] pci_bus 0000:00: root bus resource [??? 0x00000000 flags 0x0] [ 0.725049] pci_bus 0000:00: No busn resource found for root bus, will use [bus 00-ff] [ 0.732946] pci 0000:00:00.0: [0e8d:0801] type 01 class 0x060400 [ 0.738909] pci 0000:00:00.0: reg 0x14: [mem 0x00000000-0x0000ffff] [ 0.745126] pci 0000:00:00.0: supports D1 [ 0.749065] pci 0000:00:00.0: PME# supported from D0 D1 D3hot [ 0.754997] pci 0000:00:01.0: [0e8d:0801] type 01 class 0x060400 [ 0.760964] pci 0000:00:01.0: reg 0x14: [mem 0x00000000-0x0000ffff] [ 0.767165] pci 0000:00:01.0: supports D1 [ 0.771122] pci 0000:00:01.0: PME# supported from D0 D1 D3hot [ 0.777060] pci 0000:00:00.0: bridge configuration invalid ([bus 00-00]), reconfiguring [ 0.784988] pci 0000:00:01.0: bridge configuration invalid ([bus 00-00]), reconfiguring [ 0.793100] pci 0000:01:00.0: [14c3:7916] type 00 class 0x000280 [ 0.799097] pci 0000:01:00.0: reg 0x10: [mem 0x00000000-0x000fffff 64bit pref] [ 0.806229] pci 0000:01:00.0: reg 0x18: [mem 0x00000000-0x00003fff 64bit pref] [ 0.813422] pci 0000:01:00.0: reg 0x20: [mem 0x00000000-0x00000fff 64bit pref] [ 0.820653] pci 0000:01:00.0: supports D1 D2 [ 0.824843] pci 0000:01:00.0: PME# supported from D0 D1 D2 D3hot D3cold [ 0.831618] pci_bus 0000:01: busn_res: [bus 01-ff] end is updated to 01 [ 0.838343] pci 0000:02:00.0: [14c3:7915] type 00 class 0x000280 [ 0.844321] pci 0000:02:00.0: reg 0x10: [mem 0x00000000-0x000fffff 64bit pref] [ 0.851478] pci 0000:02:00.0: reg 0x18: [mem 0x00000000-0x00003fff 64bit pref] [ 0.858629] pci 0000:02:00.0: reg 0x20: [mem 0x00000000-0x00000fff 64bit pref] [ 0.865888] pci 0000:02:00.0: supports D1 D2 [ 0.870063] pci 0000:02:00.0: PME# supported from D0 D1 D2 D3hot D3cold [ 0.876865] pci_bus 0000:02: busn_res: [bus 02-ff] end is updated to 02 [ 0.883388] pci_bus 0000:00: busn_res: [bus 00-ff] end is updated to 02 [ 0.890019] pci 0000:00:00.0: BAR 9: assigned [mem 0x60000000-0x601fffff pref] [ 0.897132] pci 0000:00:01.0: BAR 9: assigned [mem 0x60200000-0x603fffff pref] [ 0.904331] pci 0000:00:00.0: BAR 1: assigned [mem 0x60400000-0x6040ffff] [ 0.911053] pci 0000:00:01.0: BAR 1: assigned [mem 0x60410000-0x6041ffff] [ 0.917810] pci 0000:01:00.0: BAR 0: assigned [mem 0x60000000-0x600fffff 64bit pref] [ 0.925496] pci 0000:01:00.0: BAR 2: assigned [mem 0x60100000-0x60103fff 64bit pref] [ 0.933201] pci 0000:01:00.0: BAR 4: assigned [mem 0x60104000-0x60104fff 64bit pref] [ 0.940872] pci 0000:00:00.0: PCI bridge to [bus 01] [ 0.945798] pci 0000:00:00.0: bridge window [mem 0x60000000-0x601fffff pref] [ 0.952961] pci 0000:02:00.0: BAR 0: assigned [mem 0x60200000-0x602fffff 64bit pref] [ 0.960678] pci 0000:02:00.0: BAR 2: assigned [mem 0x60300000-0x60303fff 64bit pref] [ 0.968351] pci 0000:02:00.0: BAR 4: assigned [mem 0x60304000-0x60304fff 64bit pref] [ 0.976050] pci 0000:00:01.0: PCI bridge to [bus 02] [ 0.980948] pci 0000:00:01.0: bridge window [mem 0x60200000-0x603fffff pref] [ 0.989907] clocksource: Switched to clocksource GIC [ 0.996927] NET: Registered protocol family 2 [ 1.001993] TCP established hash table entries: 2048 (order: 1, 8192 bytes) [ 1.008876] TCP bind hash table entries: 2048 (order: 2, 16384 bytes) [ 1.015304] TCP: Hash tables configured (established 2048 bind 2048) [ 1.021653] UDP hash table entries: 256 (order: 1, 8192 bytes) [ 1.027400] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes) [ 1.033915] NET: Registered protocol family 1 [ 1.038260] PCI: CLS 80 bytes, default 32 [ 1.059214] squashfs: version 4.0 (2009/01/31) Phillip Lougher [ 1.065038] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc. [ 1.077761] io scheduler noop registered [ 1.081697] io scheduler deadline registered (default) [ 1.088408] Serial: 8250/16550 driver, 3 ports, IRQ sharing disabled [ 1.096031] console [ttyS0] disabled [ 1.099571] 1e000c00.uartlite: ttyS0 at MMIO 0x1e000c00 (irq = 33, base_baud = 3125000) is a 16550A [ 1.108572] console [ttyS0] enabled [ 1.108572] console [ttyS0] enabled [ 1.115475] bootconsole [early0] disabled [ 1.115475] bootconsole [early0] disabled [ 1.123978] 1e000d00.uartfull: ttyS1 at MMIO 0x1e000d00 (irq = 34, base_baud = 3125000) is a 16550A [ 1.133539] 1e000e00.uartfull: ttyS2 at MMIO 0x1e000e00 (irq = 35, base_baud = 3125000) is a 16550A [ 1.145490] libphy: Fixed MDIO Bus: probed [ 1.190248] libphy: mdio: probed [ 1.194063] mtk_soc_eth 1e100000.ethernet: generated random MAC address 56:00:da:aa:bb:cc [ 1.202808] mtk_soc_eth 1e100000.ethernet: connected mac 0 to PHY at fixed-0:00 [uid=00000000, driver=Generic PHY] [ 1.213991] mtk_soc_eth 1e100000.ethernet eth0: mediatek frame engine at 0xbe100000, irq 10 [ 1.222436] mtk_soc_eth 1e100000.ethernet: generated random MAC address 4e:cd:54:dd:ee:ff [ 1.231147] mtk_soc_eth 1e100000.ethernet: connected mac 1 to PHY at fixed-0:01 [uid=00000000, driver=Generic PHY] [ 1.242260] mtk_soc_eth 1e100000.ethernet eth1: mediatek frame engine at 0xbe100000, irq 10 [ 1.250903] register mt_drv [ 1.253882] <--mt7916_hif_init() [ 1.257619] Rx[0] Ring: total 24576 bytes allocated [ 1.267002] Rx[1] Ring: total 16384 bytes allocated [ 1.272000] <-- pci_alloc_tx_rx_ring_mem, Status=0 [ 1.311835] [ 1.311835] [ 1.311835] === pAd = c0301000, size = 13956576 === [ 1.311835] [ 1.322681] <-- RTMPAllocAdapterBlock, Status=0 [ 1.327225] PCI CSRBaseAddress =0xc0200000, csr_addr=0xc0200000! [ 1.333260] RTMPInitPCIeDevice():device_id=0x7915 [ 1.337968] mt7915_init()--> [ 1.340860] Use the default iPAiLNA bin image! [ 1.345376] <--mt7915_init() [ 1.348567] RtmpOSFileOpen(): Error 2 opening /etc/wireless/l1profile.dat [ 1.356461] wdev_init(caller:RTMP_COM_IoctlHandle+0x36c/0x17e4), wdev(0) [ 1.364091] Rx[0] Ring: total 24576 bytes allocated [ 1.369149] Rx[1] Ring: total 24576 bytes allocated [ 1.376409] Rx[2] Ring: total 8192 bytes allocated [ 1.385565] Rx[3] Ring: total 16384 bytes allocated [ 1.392792] Rx[4] Ring: total 8192 bytes allocated [ 1.397636] <-- pci_alloc_tx_rx_ring_mem, Status=0 [ 1.404376] mt7621_wdt 1e000100.wdt: Initialized [ 1.412759] NET: Registered protocol family 10 [ 1.418757] NET: Registered protocol family 17 [ 1.423353] bridge: automatic filtering via arp/ip/ip6tables has been deprecated. Update your scripts to load br_netfilter if you need this. [ 1.436000] 8021q: 802.1Q VLAN Support v1.8 [ 1.442609] mtkmips-pinmux pinctrl: spi is already enabled [ 1.448114] mtk-nand 1e003000.nand: Error applying setting, reverse things back [ 1.456155] nand: device found, Manufacturer ID: 0xc8, Chip ID: 0xd1 [ 1.462524] nand: GD/ESMT PSU1GA30DT [ 1.466098] nand: 128 MiB, SLC, erase size: 128 KiB, page size: 2048, OOB size: 64 [ 1.473685] mtk-nand 1e003000.nand: JFFS2 fixup enabled [ 1.479502] Scanning device for bad blocks [ 2.131048] 9 ofpart partitions found on MTD device mtk-nand [ 2.136719] Creating 9 MTD partitions on "mtk-nand": [ 2.141704] 0x000000000000-0x000000080000 : "Bootloader" [ 2.148425] 0x000000080000-0x000000100000 : "Config" [ 2.154651] 0x000000100000-0x000000180000 : "Factory" [ 2.160962] 0x000000180000-0x000003980000 : "firmware" [ 2.453699] 2 fit-fw partitions found on MTD device firmware [ 2.459380] 0x000000180000-0x000000500000 : "kernel" [ 2.465780] 0x000000500000-0x000003980000 : "rootfs" [ 2.472601] mtd: device 5 (rootfs) set to be root filesystem [ 2.478449] 1 squashfs-split partitions found on MTD device rootfs [ 2.484673] 0x000000f60000-0x000003980000 : "rootfs_var" [ 2.491744] 0x000003980000-0x000007180000 : "firmware_backup" [ 2.499264] 0x000007180000-0x000007380000 : "CFG" [ 2.505358] 0x000007380000-0x000007980000 : "RAE" [ 2.511555] 0x000007980000-0x0000079a0000 : "POT" [ 2.517558] 0x0000079a0000-0x0000079e0000 : "LOG" [ 2.532880] mtdoops: ready 0, 1 (no erase) [ 2.536980] mtdoops: Attached to MTD device 11 [ 2.580053] mt753x gsw: Switch is MediaTek MT7530 rev 1 [ 2.606785] libphy: mt753x_mdio: probed [ 2.616688] hctosys: unable to open rtc device (rtc0) [ 2.628278] VFS: Mounted root (squashfs filesystem) readonly on device 31:5. [ 2.635905] Freeing unused kernel memory: 200K [ 2.640390] This architecture does not have kernel memory protection. [ 3.267541] init: Console is alive [ 3.271227] init: - watchdog - [ 4.146926] kmodloader: loading kernel modules from /etc/modules-boot.d/* [ 4.204304] usbcore: registered new interface driver usbfs [ 4.210041] usbcore: registered new interface driver hub [ 4.215521] usbcore: registered new device driver usb [ 4.252185] SCSI subsystem initialized [ 4.279999] xhci-mtk 1e1c0000.usb: xHCI Host Controller [ 4.285277] xhci-mtk 1e1c0000.usb: new USB bus registered, assigned bus number 1 [ 4.301725] xhci-mtk 1e1c0000.usb: hcc params 0x01401198 hci version 0x96 quirks 0x00210010 [ 4.310178] xhci-mtk 1e1c0000.usb: irq 29, io mem 0x1e1c0000 [ 4.316708] hub 1-0:1.0: USB hub found [ 4.320567] hub 1-0:1.0: 2 ports detected [ 4.324953] xhci-mtk 1e1c0000.usb: xHCI Host Controller [ 4.330229] xhci-mtk 1e1c0000.usb: new USB bus registered, assigned bus number 2 [ 4.337750] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM. [ 4.346610] hub 2-0:1.0: USB hub found [ 4.350468] hub 2-0:1.0: 1 port detected [ 4.364772] usbcore: registered new interface driver usb-storage [ 4.372889] kmodloader: done loading kernel modules from /etc/modules-boot.d/* [ 4.390194] init: - preinit - [ 5.950796] jffs2: notice: (481) jffs2_build_xattr_subsystem: complete building xattr subsystem, 0 of xdatum (0 unchecked, 0 orphan) and 0 of xref (0 dead, 0 orphan) found. [ 5.959349] mt753x gsw: Port 0 Link is Up - 1Gbps/Full ## Error: "fenv_restore" not defined [ 6.698989] jffs2: Empty flash at 0x003a0de0 ends at 0x003a1000 [ 6.743670] jffs2: Empty flash at 0x003a1c3c ends at 0x003a2000 [ 6.786977] jffs2: Empty flash at 0x003a2c3c ends at 0x003a3000 [ 6.827765] jffs2: Empty flash at 0x003a4d34 ends at 0x003a5000 [ 6.865448] jffs2: Empty flash at 0x003a72ec ends at 0x003a7800 [ 6.973492] jffs2: notice: (504) jffs2_build_xattr_subsystem: complete building xattr subsystem, 0 of xdatum (0 unchecked, 0 orphan) and 0 of xref (0 dead, 0 orphan) found. [ 7.170318] jffs2: notice: (505) check_node_data: wrong data CRC in data node at 0x0051e70c: read 0xe11a6151, calculated 0xd9857914. [ 7.184408] jffs2: notice: (505) check_node_data: wrong data CRC in data node at 0x0051d63c: read 0xe11a6151, calculated 0x3e584fad. [ 7.246796] jffs2: notice: (482) check_node_data: wrong data CRC in data node at 0x000c37b4: read 0xe9ac208, calculated 0x67d21930. [ 7.262255] jffs2: notice: (505) check_node_data: wrong data CRC in data node at 0x003ab834: read 0x9f0df7ce, calculated 0x40cfe945. [ 7.678153] Ebtables v2.0 registered [ 7.717611] random: procd: uninitialized urandom read (4 bytes read, 54 bits of entropy available) =====> restore_demaged_wificfg <===== ---factory_mode[off] --- not factory_mode,set otp ---- otp_init ---- set ra0 otp -------- [ 8.284914] random: jshn: uninitialized urandom read (4 bytes read, 67 bits of entropy available) [ 8.406275] random: jshn: uninitialized urandom read (4 bytes read, 68 bits of entropy available) [ 8.546282] random: jshn: uninitialized urandom read (4 bytes read, 70 bits of entropy available) [ 8.615863] random: jshn: uninitialized urandom read (4 bytes read, 70 bits of entropy available) [ 8.690745] random: jshn: uninitialized urandom read (4 bytes read, 70 bits of entropy available) sendto(): Network unreachable Press the [f] key and hit [enter] to enter failsafe mode Press the [1], [2], [3] or [4] key and hit [enter] to select the debug level [ 13.807861] mount_root: mounting /dev/root [ 13.813614] mount_root: loading kmods from internal overlay [ 13.869471] kmodloader: loading kernel modules from //etc/modules-boot.d/* [ 13.886671] kmodloader: done loading kernel modules from //etc/modules-boot.d/* [ 14.138931] block: attempting to load /etc/config/fstab [ 14.146929] block: extroot: not configured [ 14.153620] urandom-seed: Seed file not found (/etc/urandom.seed) [ 14.303613] procd: - early - [ 14.306607] procd: - watchdog - [ 15.010295] procd: - watchdog - [ 15.013769] procd: - ubus - [ 15.121193] random: ubusd: uninitialized urandom read (4 bytes read, 118 bits of entropy available) [ 15.240884] random: ubusd: uninitialized urandom read (4 bytes read, 120 bits of entropy available) [ 15.410595] random: ubusd: uninitialized urandom read (4 bytes read, 120 bits of entropy available) [ 15.420061] random: ubusd: uninitialized urandom read (4 bytes read, 120 bits of entropy available) [ 15.431619] procd: - init - [ 15.975139] random: nonblocking pool is initialized [ 16.053599] kmodloader: loading kernel modules from /etc/modules.d/* [ 16.095910] l2tp_core: L2TP core driver, V2.0 [ 16.101416] l2tp_netlink: L2TP netlink interface [ 16.107163] gre: GRE over IPv4 demultiplexor driver [ 16.113397] ip_gre: GRE over IPv4 tunneling driver [ 16.125010] ip6_tables: (C) 2000-2006 Netfilter Core Team [ 16.144245] fuse init (API version 7.23) [ 16.153481] Bridge firewalling registered [ 16.160399] mtk-eip93 1e004000.crypto: Assigning IRQ: 26 [ 16.167901] mtk-eip93 1e004000.crypto: Init succesfull [ 16.197953] ip_tables: (C) 2000-2006 Netfilter Core Team [ 16.207303] Current mapfilter version v2.0.2 [ 16.213023] -->mtfwd_init(ver:1.0)<-- [ 16.223318] nf_conntrack version 0.5.0 (3658 buckets, 14632 max) [ 16.272017] Netfilter messages via NETLINK v0.30. [ 16.278374] usbcore: registered new interface driver ums-alauda [ 16.285777] usbcore: registered new interface driver ums-cypress [ 16.293318] usbcore: registered new interface driver ums-datafab [ 16.300760] usbcore: registered new interface driver ums-freecom [ 16.308278] usbcore: registered new interface driver ums-isd200 [ 16.315800] usbcore: registered new interface driver ums-jumpshot [ 16.323344] usbcore: registered new interface driver ums-karma [ 16.331695] usbcore: registered new interface driver ums-sddr09 [ 16.340386] usbcore: registered new interface driver ums-sddr55 [ 16.349004] usbcore: registered new interface driver ums-usbat [ 16.358575] usbcore: registered new interface driver usblp [ 16.379296] xt_time: kernel timezone is -0000 [ 16.385820] usbcore: registered new interface driver asix [ 16.393088] usbcore: registered new interface driver ax88179_178a [ 16.406248] ctnetlink v0.93: registering with nfnetlink. [ 16.411917] kmodloader: done loading kernel modules from /etc/modules.d/* [ 19.278034] [mtfwd] update eth interface eth0 [ 24.403972] mediatek_soc_hnat 1e100000.hnat: wan = eth1 [ 24.409234] mediatek_soc_hnat 1e100000.hnat: lan = eth0 [ 24.414519] mediatek_soc_hnat 1e100000.hnat: ppd = eth0 [ 24.419859] mediatek_soc_hnat 1e100000.hnat: gmac num = 2 [ 24.425743] mediatek_soc_hnat 1e100000.hnat: ext devices = rax0 [ 24.431743] mediatek_soc_hnat 1e100000.hnat: ext devices = ra0 [ 24.437581] mediatek_soc_hnat 1e100000.hnat: ext devices = rax1 [ 24.443559] mediatek_soc_hnat 1e100000.hnat: ext devices = ra1 [ 24.449503] mediatek_soc_hnat 1e100000.hnat: ext devices = rax2 [ 24.455546] mediatek_soc_hnat 1e100000.hnat: ext devices = ra2 [ 24.461500] mediatek_soc_hnat 1e100000.hnat: ext devices = rax3 [ 24.467509] mediatek_soc_hnat 1e100000.hnat: ext devices = ra3 [ 24.473516] mediatek_soc_hnat 1e100000.hnat: ext devices = apclix0 [ 24.479785] mediatek_soc_hnat 1e100000.hnat: ext devices = apcli0 [ 24.488350] mediatek_soc_hnat 1e100000.hnat: FOE entry number = 8192 [ 24.496087] mediatek_soc_hnat 1e100000.hnat: hwnat start [ 25.322558] device eth0 entered promiscuous mode [ 25.337195] br-lan: port 1(eth0) entered listening state [ 25.342730] br-lan: port 1(eth0) entered listening state [ 25.348438] IPv6: ADDRCONF(NETDEV_UP): br-lan: link is not ready /sbin/mdnsrecord: avahi-daemon restart [ 27.339960] br-lan: port 1(eth0) entered learning state [ 27.543937] sh (1789): drop_caches: 3 [ 29.339923] br-lan: topology change detected, propagating [ 29.345463] br-lan: port 1(eth0) entered forwarding state [ 29.351199] IPv6: ADDRCONF(NETDEV_CHANGE): br-lan: link becomes ready [ 30.073772] ra0: ===> main_virtual_if_open [ 30.077900] RTMP_COM_IoctlHandle -> CMD_RTPRIV_IOCTL_VIRTUAL_INF_INIT [ 30.085477] load l1profile succeed! [ 30.089014] mt_service_open: wlan service opens successfully! [ 30.098311] APWdsInitialize():WdsEntry[0~15] [ 30.358660] [multi_profile_merge_5g_only] DBDC_MODE=1 [ 30.430770] multi-profile merge success, en:1,pf1_num:2,pf2_num:2,total:4 [ 30.437650] Open file "/etc/wireless/mediatek/DBDC_card0.dat" to store DBDC cfg! (23) [ 30.486329] Write file "/etc/wireless/mediatek/DBDC_card0.dat" success (size=7651)! [ 30.495449] BssidNum=4 [ 30.497958] Pf2MbssIdxMap: [ 30.500841] 0 1 2 3 [ 30.506131] MacAddress2 = 00:00:00:00:00:00 [ 30.513472] E2pAccessMode=2 [ 30.517681] SSID[0]=NETGEAR_EXT, EdcaIdx=0 [ 30.522359] SSID[1]=, EdcaIdx=0 [ 30.526121] SSID[2]=MTK_HARRIER_AP_5G, EdcaIdx=0 [ 30.531338] SSID[3]=, EdcaIdx=0 [ 30.535557] RTMPSetProfileParameters(): DBDC Mode=1, eDBDC_mode = 1 [ 30.543865] cfg_mode=16 [ 30.546487] cfg_mode=16 [ 30.549107] cfg_mode=16 [ 30.551713] wmode_band_equal(): Band Equal! [ 30.556061] cfg_mode=16 [ 30.558594] cfg_mode=16 [ 30.561157] cfg_mode=16 [ 30.563728] cfg_mode=17 [ 30.566250] cfg_mode=17 [ 30.568765] cfg_mode=17 [ 30.571365] cfg_mode=17 [ 30.574932] auto_ch_select_set_cfg(): BandIdx0, AutoChannelAtBootup=0, AutoChannelAlg = 0 [ 30.583295] auto_ch_select_set_cfg(): BandIdx1, AutoChannelAtBootup=0, AutoChannelAlg = 0 [ 30.592729] Index0 Channel=1 [ 30.595724] Index1 Channel=36 [ 30.602514] BandSteering=0 [ 30.605970] BndStrgBssIdx=1;0;1;0 [ 30.610069] [TxPower] BAND0: 100, BAND1: 100 [ 30.625306] [SKUenable] BAND0: 1, BAND1: 1 [ 30.629994] [SkuTableIdx]: 1 [ 30.633310] [CCKTxStream] BAND0: 4, BAND1: 0 [ 30.638315] [PERCENTAGEenable] BAND0: 0, BAND1: 0 [ 30.643794] [BFBACKOFFenable] BAND0: 1, BAND1: 1 [ 30.649035] [Disable160RuMu] BAND0: 1, BAND1: 1 [ 30.654362] [MaxRuOfdma] BAND0: 8, BAND1: 8 [ 30.659362] [MaxDLMuMimo] BAND0: 2, BAND1: 2 [ 30.664379] [MaxULMuMimo] BAND0: 2, BAND1: 2 [ 30.671464] profile: FragThreshold[0]=2346 [ 30.675703] profile: FragThreshold[1]=2346 [ 30.680036] profile: FragThreshold[2]=2346 [ 30.684281] profile: FragThreshold[3]=2346 [ 30.690327] APEdca0 [ 30.693202] Valid=1 [ 30.695419] APAifsn[0]=3 [ 30.698033] APAifsn[1]=7 [ 30.700710] APAifsn[2]=1 [ 30.703366] APAifsn[3]=1 [ 30.705995] APEdca1 [ 30.708814] Valid=1 [ 30.711025] APAifsn[0]=3 [ 30.713572] APAifsn[1]=7 [ 30.716118] APAifsn[2]=1 [ 30.718662] APAifsn[3]=1 [ 30.721349] APEdca2 [ 30.724470] APEdca3 [ 30.737053] BSSAifsn[0]=3 [ 30.739714] BSSAifsn[1]=7 [ 30.742461] BSSAifsn[2]=2 [ 30.745151] BSSAifsn[3]=2 [ 30.748380] BSSAifsn[0]=3 [ 30.751127] BSSAifsn[1]=7 [ 30.753785] BSSAifsn[2]=2 [ 30.756444] BSSAifsn[3]=2 [ 30.759695] BSSAifsn[0]=3 [ 30.762497] BSSAifsn[1]=7 [ 30.765212] BSSAifsn[2]=2 [ 30.767920] BSSAifsn[3]=2 [ 30.771182] BSSAifsn[0]=3 [ 30.773824] BSSAifsn[1]=7 [ 30.776512] BSSAifsn[2]=2 [ 30.779233] BSSAifsn[3]=2 [ 30.783045] UAPSDCapable[0]=1 [ 30.786197] UAPSDCapable[1]=1 [ 30.789342] default ApCliUAPSDCapable[0]=1 [ 30.793671] default ApCliUAPSDCapable[1]=1 [ 30.801606] DfsZeroWait Support=0/0 [ 30.808211] DfsZeroWaitCacTime=255/255 [ 30.814302] read_itxbf: ITxBfEn = 1 [ 30.817884] read_itxbf: BSSID[0] [ 30.821295] read_itxbf: MBSS[0] ITxBfEn = 1 [ 30.825598] read_itxbf: ITxBfEn = 1 [ 30.829222] read_itxbf: BSSID[1] [ 30.832692] read_itxbf: MBSS[1] ITxBfEn = 1 [ 30.837107] read_itxbf: ITxBfEn = 1 [ 30.840798] read_itxbf: BSSID[2] [ 30.844176] read_itxbf: MBSS[2] ITxBfEn = 1 [ 30.848493] read_itxbf: ITxBfEn = 1 [ 30.852160] read_itxbf: BSSID[3] [ 30.855494] read_itxbf: MBSS[3] ITxBfEn = 1 [ 30.859779] read_itxbf: Common.ITxBfEn = 1 [ 30.864752] read_etxbf: ETxBfEnCond = 1 [ 30.868780] read_etxbf: BSSID[0] [ 30.872140] read_etxbf: MBSS[0] ETxBfEnCond = 1 [ 30.876794] read_etxbf: ETxBfEnCond = 1 [ 30.880690] read_etxbf: BSSID[1] [ 30.883936] read_etxbf: MBSS[1] ETxBfEnCond = 1 [ 30.888497] read_etxbf: ETxBfEnCond = 1 [ 30.892462] read_etxbf: BSSID[2] [ 30.895819] read_etxbf: MBSS[2] ETxBfEnCond = 1 [ 30.900454] read_etxbf: ETxBfEnCond = 1 [ 30.904382] read_etxbf: BSSID[3] [ 30.907702] read_etxbf: MBSS[3] ETxBfEnCond = 1 [ 30.913621] HeraStbcPriority[0] = 0 [ 30.917206] HeraStbcPriority[1] = 0 [ 30.925296] MBSS[0] MuOfdmaDlEnable = 1 [ 30.929233] MBSS[1] MuOfdmaDlEnable = 1 [ 30.933234] MBSS[2] MuOfdmaDlEnable = 1 [ 30.937214] MBSS[3] MuOfdmaDlEnable = 1 [ 30.941647] MBSS[0] MuOfdmaUlEnable = 1 [ 30.945605] MBSS[1] MuOfdmaUlEnable = 1 [ 30.949564] MBSS[2] MuOfdmaUlEnable = 1 [ 30.953558] MBSS[3] MuOfdmaUlEnable = 1 [ 30.958031] MBSS[0] MuMimoDlEnable = 1 [ 30.961984] MBSS[1] MuMimoDlEnable = 1 [ 30.965778] MBSS[2] MuMimoDlEnable = 1 [ 30.969668] MBSS[3] MuMimoDlEnable = 1 [ 30.974323] MBSS[0] MuMimoUlEnable = 1 [ 30.978174] MBSS[1] MuMimoUlEnable = 1 [ 30.982135] MBSS[2] MuMimoUlEnable = 1 [ 30.985991] MBSS[3] MuMimoUlEnable = 1 [ 30.990461] [RTMPSetProfileParameters]Disable DFS/Zero wait=0/0 [ 31.065354] [PMF]Set_PMFMFPC_Proc:: apidx=0, Desired MFPC=0 [ 31.071027] [PMF]Set_PMFMFPC_Proc:: apidx=1, Desired MFPC=0 [ 31.076655] [PMF]Set_PMFMFPC_Proc:: apidx=2, Desired MFPC=0 [ 31.082365] [PMF]Set_PMFMFPC_Proc:: apidx=3, Desired MFPC=0 [ 31.088377] [PMF]Set_PMFMFPR_Proc:: apidx=0, Desired MFPR=0 [ 31.094098] [PMF]Set_PMFMFPR_Proc:: apidx=1, Desired MFPR=0 [ 31.099762] [PMF]Set_PMFMFPR_Proc:: apidx=2, Desired MFPR=0 [ 31.105460] [PMF]Set_PMFMFPR_Proc:: apidx=3, Desired MFPR=0 [ 31.111676] [PMF]Set_PMFSHA256_Proc:: apidx=0, Desired PMFSHA256=0 [ 31.117974] [PMF]Set_PMFSHA256_Proc:: apidx=1, Desired PMFSHA256=0 [ 31.124281] [PMF]Set_PMFSHA256_Proc:: apidx=2, Desired PMFSHA256=0 [ 31.130603] [PMF]Set_PMFSHA256_Proc:: apidx=3, Desired PMFSHA256=0 [ 31.138230] ReadMboParameterFromFile::(bMboEnable[0]=1, MboCapIndication = 0x40) [ 31.145698] ReadMboParameterFromFile::(bMboEnable[1]=1, MboCapIndication = 0x40) [ 31.153330] ReadMboParameterFromFile::(bMboEnable[2]=1, MboCapIndication = 0x40) [ 31.160905] ReadMboParameterFromFile::(bMboEnable[3]=1, MboCapIndication = 0x40) [ 31.168900] ReadMboParameterFromFile::(bMboEnable[0]=1) [ 31.174203] ReadMboParameterFromFile::(bMboEnable[1]=1) [ 31.179948] MAP_MODE=0 [ 31.184930] ApCliEntry[0].Enable=0 [ 31.188405] ApCliEntry[1].Enable=0 [ 31.192243] ApCliEntry[0].CfgSsidLen=15, CfgSsid=12345678NETGEAR [ 31.198863] ApCliEntry[1].CfgSsidLen=18, CfgSsid=12345678NETGEAR-5G [ 31.209092] [PMF]Set_ApCliPMFMFPC_Proc:: Desired MFPC=0 [ 31.214443] [PMF]Set_ApCliPMFMFPC_Proc:: MFPC=0, MFPR=0, SHA256=0 [ 31.220692] Set_ApCliPMFMFPC_Proc:pObj->ioctl_if is invalid value [ 31.227277] [PMF]Set_ApCliPMFMFPR_Proc:: Desired MFPR=0 [ 31.232573] [PMF]Set_ApCliPMFMFPR_Proc:: MFPC=0, MFPR=0, SHA256=0 [ 31.238758] Set_ApCliPMFMFPR_Proc:pObj->ioctl_if is invalid value [ 31.245470] [PMF]Set_ApCliPMFSHA256_Proc:: Desired PMFSHA256=0 [ 31.251387] Set_ApCliPMFSHA256_Proc:pObj->ioctl_if is invalid value [ 31.258351] APCLI[0] ApCliMuOfdmaDlEnable = 1 [ 31.262795] APCLI[1] ApCliMuOfdmaDlEnable = 1 [ 31.267903] APCLI[0] ApCliMuOfdmaUlEnable = 0 [ 31.272337] APCLI[1] ApCliMuOfdmaUlEnable = 0 [ 31.277311] APCLI[0] ApCliMuMimoDlEnable = 0 [ 31.281749] APCLI[1] ApCliMuMimoDlEnable = 0 [ 31.286509] APCLI[0] ApCliMuMimoUlEnable = 0 [ 31.290899] APCLI[1] ApCliMuMimoUlEnable = 0 [ 31.295748] rtmp_read_wds_from_file(): WDS Profile [ 31.301147] WDS Number: band[0]=0, band[1]=0 [ 31.305895] WDS-Enable mode=0 [ 31.308959] WDS-Enable mode=0 [ 31.312776] If/wds0 - PeerPhyMode=0xb1 [ 31.316625] If/wds1 - PeerPhyMode=0xb1 [ 31.322025] AsicSetReptFuncEnable, caller:RTMPSetProfileParameters+0xba30/0x11244 [ 31.329626] RepeaterCtrlExit, wrong state(0,0) [ 31.334236] Band_0_RpEn(0),RpEnByAnyBnd(0),RpEn(0) [ 31.339249] AndesSendCmdMsg: Could not send in band command due to diablefRTMP_ADAPTER_MCU_SEND_IN_BAND_CMD [ 31.349318] AndesSendCmdMsg: Command type = ed, Extension command type = 48 [ 31.356487] MACRepeaterEn=0 Band=0 [ 31.360068] AsicSetReptFuncEnable, caller:RTMPSetProfileParameters+0xba30/0x11244 [ 31.367662] RepeaterCtrlExit, wrong state(0,0) [ 31.372284] Band_1_RpEn(0),RpEnByAnyBnd(0),RpEn(0) [ 31.377197] AndesSendCmdMsg: Could not send in band command due to diablefRTMP_ADAPTER_MCU_SEND_IN_BAND_CMD [ 31.387117] AndesSendCmdMsg: Command type = ed, Extension command type = 48 [ 31.394377] MACRepeaterEn=0 Band=1 [ 31.404553] HT_BAWinSize: wdev[0]: (TX=256, RX=256) [ 31.409499] HT_BAWinSize: wdev[1]: (TX=256, RX=256) [ 31.414554] HT_BAWinSize: wdev[2]: (TX=256, RX=256) [ 31.419526] HT_BAWinSize: wdev[3]: (TX=256, RX=256) [ 31.425641] HT: WDEV[0] Ext Channel = ABOVE [ 31.429923] HT: WDEV[1] Ext Channel = ABOVE [ 31.434212] HT: WDEV[2] Ext Channel = ABOVE [ 31.438511] HT: WDEV[3] Ext Channel = ABOVE [ 31.443436] HT: greenap_cap = 0 [ 31.446880] ChipI=7915, Value=0, pcie_aspm in profile=0 [ 31.452811] 0:ra0 TWTsupport = 0 [ 31.456094] 1:(null) TWTsupport = 0 [ 31.459638] 2:(null) TWTsupport = 0 [ 31.463249] 3:(null) TWTsupport = 0 [ 31.547599] ICapMode = 0 [ 31.564861] KernelRps --> 1 [ 31.575504] WtcSetMaxStaNum: MaxStaNum:234, BssidNum:4, WdsNum:16, MSTANum:1, MaxNumChipRept:32, MinMcastWcid:283 [ 31.585956] Top Init Done! [ 31.588731] Use dev_alloc_skb [ 31.591885] token_tx_two_queues_init(): ct sw token(0) number = 2048 [ 31.598675] token_tx_two_queues_init(): token que(0) inited done!id_head/tail=0/2048 [ 31.606754] token_tx_two_queues_init(): 8d721204,8d721204 [ 31.612370] token_tx_two_queues_init(): ct sw token(1) number = 6144 [ 31.619606] token_tx_two_queues_init(): token que(1) inited done!id_head/tail=0/6144 [ 31.627545] token_tx_two_queues_init(): 8d7212ac,8d7212ac [ 31.638122] TxRing[0]: attr:0, total 2048 entry initialized [ 31.647655] TxRing[1]: attr:0, total 2048 entry initialized [ 31.657710] TxRing[2]: attr:0, total 2048 entry initialized [ 31.663679] RX[0] DESC a0c48000 size = 24576 [ 31.671393] RX[1] DESC a0c10000 size = 16384 [ 31.677670] RX[2] DESC a0df0000 size = 24576 [ 31.686057] RX[3] DESC a0df8000 size = 24576 [ 31.690533] RX[4] DESC a0dde000 size = 8192 [ 31.695822] RX[5] DESC a0e10000 size = 16384 [ 31.702100] RX[6] DESC a0e14000 size = 8192 [ 31.707628] -->TX_RING_0[0xd9330]: Attr:0, Base=0xc40000, Cnt=2048! [ 31.714228] -->TX_RING_1[0xd5420]: Attr:0, Base=0xde0000, Cnt=2048! [ 31.720702] -->TX_RING_2[0xd5430]: Attr:0, Base=0xde8000, Cnt=2048! [ 31.727087] -->TX_RING_3[0xd5400]: Attr:3, Base=0xdd7000, Cnt=128! [ 31.733607] -->TX_RING_4[0xd5410]: Attr:2, Base=0xddc000, Cnt=256! [ 31.740032] -->TX_RING_5[0xd5440]: Attr:1, Base=0xddd000, Cnt=256! [ 31.746331] -->RX_RING_0[0xd8510]: Base=0xc48000, Cnt=1536 [ 31.751919] -->RX_RING_1[0xd9520]: Base=0xc10000, Cnt=1024 [ 31.757498] -->RX_RING_2[0xd4500]: Base=0xdf0000, Cnt=1536 [ 31.763082] -->RX_RING_3[0xd4510]: Base=0xdf8000, Cnt=10 [ 31.768420] -->RX_RING_4[0xd5500]: Base=0xdde000, Cnt=512 [ 31.773930] -->RX_RING_5[0xd5510]: Base=0xe10000, Cnt=1024 [ 31.779495] -->RX_RING_6[0xd5520]: Base=0xe14000, Cnt=512 [ 31.785176] Hif Init Done! [ 31.791833] pci_driver_own_by_port: success to clear p=0 fw own, from(1): 1 is interrupt mode, 2 is polling mode. [ 31.803786] pci_driver_own_by_port: success to clear p=1 fw own, from(1): 1 is interrupt mode, 2 is polling mode. [ 31.814188] fw_prepare():using E2 ROM patch [ 31.818500] fw_prepare():using E2 RAM [ 31.822355] Parsing patch header [ 31.825748] Built date: 20210309102249a [ 31.830186] [ 31.831824] Platform: ALPS [ 31.834878] HW/SW version: 0x8a108a10 [ 31.838857] Patch version: 0xffffffff [ 31.842995] Section num: 0x2, subsys: 0x4 [ 31.847209] Section 0: type = 0x30002, offset = 0xe0, size = 0xfc90 [ 31.853705] Target address: 0x200000, length: 0xfc90 [ 31.858859] Section 1: type = 0x30002, offset = 0xfd70, size = 0x13730 [ 31.865579] Target address: 0xe000f000, length: 0x13730 [ 31.871194] Patch SEM Status = 2 [ 31.874596] patch is not ready && get semaphore success [ 31.880040] Start address = 0x200000, DL length = 64656, Data mode = 0x80000000 [ 31.888711] EventGenericEventHandler: CMD Success [ 31.893647] MtCmdAddressLenReq:(ret = 0) [ 31.898265] Start address = 0xe000f000, DL length = 79664, Data mode = 0x80000000 [ 31.907150] EventGenericEventHandler: CMD Success [ 31.912094] MtCmdAddressLenReq:(ret = 0) [ 31.916779] MtCmdPatchFinishReq [ 31.923898] EventGenericEventHandler: CMD Success [ 31.929366] Patch SEM Status = 3 [ 31.933508] release patch semaphore [ 31.937103] [42m WfMcuHwInit: Before NICLoadFirmware, check ICapMode = 0 [m [ 31.944447] Parsing CPU 0 fw tailer [ 31.947969] Chip ID: 0x0b [ 31.950848] Eco version: 0x01 [ 31.954000] Region number: 0x07 [ 31.957362] Format version: 0x02 [ 31.960839] Format flag: 0x01 [ 31.963988] Ram version: ____000000 [ 31.967666] Built date: 20210309102410 [ 31.971732] Common crc: 0x476d661d [ 31.975261] Parsing tailer region 0 [ 31.978866] Decomp crc: 0x0 [ 31.981936] Decomp size: 0x0 [ 31.984939] Decomp block size: 0x0 [ 31.988462] Target address: 0x21fc00 [ 31.992277] Download size: 110592 [ 31.995690] Feature set: 0x20 [ 31.998764] Parsing tailer region 1 [ 32.002438] Decomp crc: 0x0 [ 32.005358] Decomp size: 0x0 [ 32.008376] Decomp block size: 0x0 [ 32.011969] Target address: 0x31dc00 [ 32.015650] Download size: 205824 [ 32.019058] Feature set: 0x00 [ 32.022216] Parsing tailer region 2 [ 32.025712] Decomp crc: 0x0 [ 32.028608] Decomp size: 0x0 [ 32.031657] Decomp block size: 0x0 [ 32.035167] Target address: 0x417400 [ 32.038837] Download size: 31744 [ 32.042260] Feature set: 0x00 [ 32.045474] Parsing tailer region 3 [ 32.048981] Decomp crc: 0x0 [ 32.052071] Decomp size: 0x0 [ 32.055076] Decomp block size: 0x0 [ 32.058594] Target address: 0xe0022800 [ 32.062520] Download size: 411136 [ 32.065934] Feature set: 0x00 [ 32.069015] Parsing tailer region 4 [ 32.072628] Decomp crc: 0x0 [ 32.075523] Decomp size: 0x0 [ 32.078493] Decomp block size: 0x0 [ 32.082124] Target address: 0xe0086e00 [ 32.086019] Download size: 332288 [ 32.089431] Feature set: 0x00 [ 32.092677] Parsing tailer region 5 [ 32.096173] Decomp crc: 0x0 [ 32.099051] Decomp size: 0x0 [ 32.102108] Decomp block size: 0x0 [ 32.105626] Target address: 0x23ac00 [ 32.109291] Download size: 87040 [ 32.112716] Feature set: 0x00 [ 32.115808] Parsing tailer region 6 [ 32.119298] Decomp crc: 0x0 [ 32.122277] Decomp size: 0x0 [ 32.125267] Decomp block size: 0x0 [ 32.128764] Target address: 0x400000 [ 32.132498] Download size: 81920 [ 32.135819] Feature set: 0x00 [ 32.138905] Release info: header tag = 0, total length = 64 [ 32.144684] tag 1, padding length = 2, tag length = 58 [ 32.149978] payload: t-neptune-mp-mt7915-2045-MT7915_MP_7_4_2045-20210309101903 [ 32.157868] Start address = 0x21fc00, DL length = 110592, Data mode = 0x80000000 [ 32.166695] EventGenericEventHandler: CMD Success [ 32.171652] MtCmdAddressLenReq:(ret = 0) [ 32.176645] Start address = 0x31dc00, DL length = 205824, Data mode = 0x80000000 [ 32.185543] EventGenericEventHandler: CMD Success [ 32.190383] MtCmdAddressLenReq:(ret = 0) [ 32.196343] Start address = 0x417400, DL length = 31744, Data mode = 0x80000000 [ 32.205163] EventGenericEventHandler: CMD Success [ 32.210113] MtCmdAddressLenReq:(ret = 0) [ 32.214464] Start address = 0xe0022800, DL length = 411136, Data mode = 0x80000000 [ 32.223510] EventGenericEventHandler: CMD Success [ 32.228530] MtCmdAddressLenReq:(ret = 0) [ 32.237641] Start address = 0xe0086e00, DL length = 332288, Data mode = 0x80000000 [ 32.246649] EventGenericEventHandler: CMD Success [ 32.251884] MtCmdAddressLenReq:(ret = 0) [ 32.260096] Start address = 0x23ac00, DL length = 87040, Data mode = 0x80000000 [ 32.268731] EventGenericEventHandler: CMD Success [ 32.273606] MtCmdAddressLenReq:(ret = 0) [ 32.278549] Start address = 0x400000, DL length = 81920, Data mode = 0x80000000 [ 32.287353] EventGenericEventHandler: CMD Success [ 32.292649] MtCmdAddressLenReq:(ret = 0) [ 32.297538] MtCmdFwStartReq: override = 0x1, address = 0x21fc00 [ 32.304878] EventGenericEventHandler: CMD Success [ 32.309739] Parsing CPU 1 fw tailer [ 32.313367] Chip ID: 0x00 [ 32.316106] Eco version: 0x01 [ 32.319165] Region number: 0x03 [ 32.322490] Format version: 0x02 [ 32.325884] Format flag: 0x01 [ 32.328990] Ram version: DEV_000000 [ 32.332731] Built date: 20210309102442 [ 32.336681] Common crc: 0x545be6a7 [ 32.340238] Parsing tailer region 0 [ 32.343762] Decomp crc: 0x0 [ 32.346732] Decomp size: 0x0 [ 32.349741] Decomp block size: 0x0 [ 32.353415] Target address: 0x10200000 [ 32.357322] Download size: 88384 [ 32.360713] Feature set: 0x00 [ 32.363827] Parsing tailer region 1 [ 32.367350] Decomp crc: 0x0 [ 32.370311] Decomp size: 0x0 [ 32.373281] Decomp block size: 0x0 [ 32.376764] Target address: 0x10300000 [ 32.380672] Download size: 19504 [ 32.384007] Feature set: 0x00 [ 32.387135] Parsing tailer region 2 [ 32.390715] Decomp crc: 0x0 [ 32.393621] Decomp size: 0x0 [ 32.396644] Decomp block size: 0x0 [ 32.400245] Target address: 0xe0000000 [ 32.404127] Download size: 8768 [ 32.407380] Feature set: 0x00 [ 32.410568] Release info: header tag = 0, total length = 0 [ 32.416197] Start address = 0x10200000, DL length = 88384, Data mode = 0x80000010 [ 32.425015] EventGenericEventHandler: CMD Success [ 32.499079] MtCmdAddressLenReq:(ret = 0) [ 32.504219] Start address = 0x10300000, DL length = 19504, Data mode = 0x80000010 [ 32.513152] EventGenericEventHandler: CMD Success [ 32.523218] MtCmdAddressLenReq:(ret = 0) [ 32.527486] Start address = 0xe0000000, DL length = 8768, Data mode = 0x80000010 [ 32.536426] EventGenericEventHandler: CMD Success [ 32.542378] MtCmdAddressLenReq:(ret = 0) [ 32.546643] MtCmdFwStartReq: override = 0x4, address = 0x0 [ 32.652526] EventGenericEventHandler: CMD Success [ 32.659510] MCU Init Done! [ 32.662475] efuse_probe: efuse = 10000012 [ 32.666551] RtmpChipOpsEepromHook::e2p_type=2, inf_Type=5 [ 32.672023] RtmpEepromGetDefault::e2p_dafault=1 [ 32.676597] RtmpChipOpsEepromHook: E2P type(2), E2pAccessMode = 2, E2P default = 1 [ 32.684253] NVM is FLASH mode. dev_idx [0] FLASH OFFSET [0x0] [ 32.690200] [42mrtmp_nv_init(): EEPROM Size[131072][m [ 32.703522] [42m[EEPROMImage - PreCalImageInfo - PreCalImage - TxDPDImage][m [ 32.703522] [42m[0x805c0000 - 0x805c0e00 - 0x805c0e10 - 0x805cd220][m [ 32.717480] validFlashEepromID(): eeFlashId=7915, pAd->ChipID=7915 [ 32.725762] [32m[d-die version:1][m [ 32.832252] [32m[a-die version:2][m [ 32.978548] [ 32.980140] [34mNICReadEEPROMParameters: EEPROM 0x62 7[m [ 32.985655] NICReadEEPROMParameters: Group Pre-Cal finished, load Group Pre-Cal data [ 32.994685] NICReadEEPROMParameters: DPD 5G Pre-Cal finished! [ 33.000536] NICReadEEPROMParameters: DPD 2G Pre-Cal finished! [ 33.154615] Country Region from e2p = 0 [ 33.158500] antenna_default_reset() todo [ 33.162705] antenna_default_reset() value = 0x5292, TxPath = 2, RxPath = 2 [ 33.169758] RTMPReadTxPwrPerRate(458): Don't Support this now! [ 33.175891] rc_radio_init(): DBDC MODE=1, ConcurrentBand=2 [ 33.181559] rc_radio_init(): radio_ctrl=8eb69710,Band=0,rfcap=3,channel=1,PhyMode=2 extCha=0xf [ 33.190332] rc_radio_init(): radio_ctrl=8eb69a68,Band=1,rfcap=3,channel=1,PhyMode=2 extCha=0xf [ 33.199272] ucAction = 0, ucBandIdx = 0, ucSmthIntlBypass = 0 [ 33.205228] ucAction = 0, ucBandIdx = 1, ucSmthIntlBypass = 0 [ 33.211143] AntCfgInit(2858): Not support for HIF_MT yet! [ 33.216655] mt7915_check_RF_lock_down: RFlockDown Enable: 0 [ 33.222521] [34mMtReadPwrLimitTable: sku table idx: 1 [0mmt7915_check_RF_lock_down: RFlockDown Enable: 0 [ 33.247788] mt7915_check_RF_lock_down: RFlockDown Enable: 0 [ 33.253474] [34mMtReadPwrLimitTable: sku table idx: 1 [0mmt7915_check_RF_lock_down: RFlockDown Enable: 0 [ 33.272247] EEPROM Init Done! [ 33.275361] mac_init()--> [ 33.278110] init_mac_cr()--> [ 33.281187] <--mac_init() [ 33.287315] CmdRxHdrTransBLUpdateRsp::EventExtCmdResult.u4Status = 0x0 [ 33.296234] CmdRxHdrTransBLUpdateRsp::EventExtCmdResult.u4Status = 0x0 [ 33.304801] CmdRxHdrTransBLUpdateRsp::EventExtCmdResult.u4Status = 0x0 [ 33.311490] MAC Init Done! [ 33.314317] BBPInit():BBP Initialization..... [ 33.318715] Band 0: valid=1, Band=2, CBW=1, CentCh/PrimCh=1/1, prim_ch_idx=0, txStream=2 [ 33.327065] Band 1: valid=0, Band=0, CBW=0, CentCh/PrimCh=0/0, prim_ch_idx=0, txStream=0 [ 33.335398] BBPInit() todo [ 33.338133] PHY Init Done! [ 33.353424] tx_pwr_comp_init():NotSupportYet! [ 33.353448] [ 33.353448] led_send_fw_cmd: [ 33.353531] 0205000000240000 [ 33.353531] led_0 map to gpio_18... [ 33.353557] [ 33.353557] led_send_fw_cmd: [ 33.353588] 0205010000340000 [ 33.353588] led_1 map to gpio_26... [ 33.379617] Set_SCSDefaultEnable(): BandIdx=0, SCSEnable=1 [ 33.385353] Set_SCSDefaultEnable(): BandIdx=1, SCSEnable=1 [ 33.392137] MtCmdSetMacTxRx:(ret = 0) [ 33.396062] MtCmdSetMacTxRx:(ret = 0) [ 33.400318] ap_ftkd> Initialize FT KDP Module... [ 33.405014] Main bssid = 00:00:00:00:00:00 [ 33.409138] SetMuruPlatformTypeProc: param.ucPlatformType = 2 [ 33.415035] muru_cfg_dlul_limits:(Ret = 1 [ 33.419098] muru_cfg_dlul_limits:(Ret = 1 [ 33.424438] MtCmdSetMacTxRx:(ret = 0) [ 33.428628] MtCmdSetMacTxRx:(ret = 0) [ 33.432546] <==== mt_wifi_init, Status=0 [ 33.436647] CmdHeraStbcPriorityCtrl: u1BandIdx=0, u1Operation=1, u1StbcPriority=0 [ 33.444353] CmdHeraStbcPriorityCtrl: u1BandIdx=1, u1Operation=1, u1StbcPriority=0 [ 33.452995] Register MBSSID IF 1 (ra1) [ 33.456950] wdev_init(caller:mbss_create_vif+0x320/0x4f0), wdev(1) [ 33.465978] Register MBSSID IF 2 (rax0) [ 33.469926] wdev_init(caller:mbss_create_vif+0x320/0x4f0), wdev(2) [ 33.479205] Register MBSSID IF 3 (rax1) [ 33.483294] wdev_init(caller:mbss_create_vif+0x320/0x4f0), wdev(3) [ 33.491367] MSTA_Init (2) ---> ApCli [ 33.496893] Register MSTA IF (apcli0) , pAd->MSTANum = 1 [ 33.502420] wdev_init(caller:MSTA_Init+0x3fc/0x658), wdev(4) [ 33.508360] Caller: SetCommonHT+0x100/0x170 [ 33.512679] [ 33.512679] phy_mode=78, ch=1, wdev_type=2 [ 33.518316] ht_cap: ht_cap->HtCapInfo, [ 33.522300] ldpc=1,ch_width=1,gf=0,sgi20=1,sgi40=1,tx_stbc=1,rx_stbc=1,amsdu_size=1 [ 33.530049] ht_cap: ht_cap->HtCapParm, [ 33.533951] mdpu_density=0, ampdu_factor=3 [ 33.542831] Register MSTA IF (apclix0) , pAd->MSTANum = 2 [ 33.548374] wdev_init(caller:MSTA_Init+0x3fc/0x658), wdev(5) [ 33.554488] Caller: SetCommonHT+0x100/0x170 [ 33.558708] [ 33.558708] phy_mode=177, ch=36, wdev_type=2 [ 33.564641] ht_cap: ht_cap->HtCapInfo, [ 33.568530] ldpc=1,ch_width=1,gf=0,sgi20=1,sgi40=1,tx_stbc=1,rx_stbc=1,amsdu_size=1 [ 33.576379] ht_cap: ht_cap->HtCapParm, [ 33.580345] mdpu_density=0, ampdu_factor=3 [ 33.586486] mt_service_init: wlan service inits successfully! [ 33.592398] WtcSetMaxStaNum: MaxStaNum:232, BssidNum:4, WdsNum:16, MSTANum:2, MaxNumChipRept:32, MinMcastWcid:282 [ 33.815685] RedInit: set CR4/N9 RED Enable to 1. [ 33.820586] RedInit: RED Initiailize Done. [ 33.827015] proc_rps_file_open open proc file[/sys/class/net/eth0/queues/rx-0/rps_cpus] OK [ 33.836671] proc_rps_file_open open proc file[/sys/class/net/ra0/queues/rx-0/rps_cpus] OK [ 33.846205] proc_rps_file_open open proc file[/sys/class/net/rax0/queues/rx-0/rps_cpus] OK [ 33.855404] proc_rps_file_open open proc file[/proc/irq/31/smp_affinity] OK [ 33.863262] proc_rps_file_open open proc file[/proc/sys/net/core/netdev_max_backlog] OK [ 33.871873] proc_rps_file_open open proc file[/sys/module/rcupdate/parameters/rcu_cpu_stall_timeout] OK [ 33.883175] cp_support_is_enabled: set CR4 CP_SUPPORT to Mode 2. [ 33.889278] RTMP_COM_IoctlHandle -> CMD_RTPRIV_IOCTL_VIRTUAL_INF_UP [ 33.895764] wifi_sys_open(), wdev idx = 0 [ 33.900153] ucAction = 0, ucBandIdx = 0, ucSmthIntlBypass = 0 [ 33.906103] ucAction = 0, ucBandIdx = 1, ucSmthIntlBypass = 0 [ 33.912259] BuildChannelList() BandIdx = 0, PhyMode = 78, ChListNum = 11: [ 33.919331] phy_oper_init(): operate TxStream = 2, RxStream = 2 [ 33.925744] mt7915_apply_dpd_flatness_data: DPD Pre-Cal finished, load DPD Pre-Cal data [ 34.020691] Caller: wlan_operate_init+0x100/0x114 [ 34.025573] [ 34.025573] phy_mode=78, ch=1, wdev_type=1 [ 34.031519] ht_cap: ht_cap->HtCapInfo, [ 34.035483] ldpc=1,ch_width=1,gf=0,sgi20=1,sgi40=1,tx_stbc=1,rx_stbc=1,amsdu_size=1 [ 34.043312] ht_cap: ht_cap->HtCapParm, [ 34.047340] mdpu_density=5, ampdu_factor=3 [ 34.051860] hw_ctrl_flow_v2_open: wdev_idx=0 [ 34.056692] AP inf up for ra_0(func_idx) OmacIdx=0 [ 34.061766] AsicRadioOnOffCtrl(): DbdcIdx=0 RadioOn [ 34.067360] ApAutoChannelAtBootUp-----------------> [ 34.072855] ApAutoChannelAtBootUp: AutoChannelBootup[0] = 0 [ 34.081260] MtCmdSetMacTxRx:(ret = 0) [ 34.085200] MtCmdSetMacTxRx:(ret = 0) [ 34.088900] [41m ap_run_at_boot() : ACS is disable !![m [ 34.094613] ===> APStartUpForMbss(caller:ap_inf_open+0x178/0x1e0), mbss_idx:0, CfgMode:177 [ 34.103528] [PMF]APPMFInit:: apidx=0, MFPC=0, MFPR=0, SHA256=0 [ 34.109923] Caller: SetCommonHT+0x100/0x170 [ 34.114349] [ 34.114349] phy_mode=78, ch=1, wdev_type=1 [ 34.120098] ht_cap: ht_cap->HtCapInfo, [ 34.124114] ldpc=1,ch_width=1,gf=0,sgi20=1,sgi40=1,tx_stbc=1,rx_stbc=1,amsdu_size=1 [ 34.132407] ht_cap: ht_cap->HtCapParm, [ 34.136512] mdpu_density=5, ampdu_factor=3 [ 34.140823] Enable 20/40 BSSCoex Channel Scan(BssCoex=1) [ 34.153461] MtCmdSetMacTxRx:(ret = 0) [ 34.158524] MtCmdSetMacTxRx:(ret = 0) [ 34.162704] mt7915_apply_dpd_flatness_data: DPD Pre-Cal finished, load DPD Pre-Cal data [ 34.200470] AP OBSS SYNC - BBP R4 to 20MHz.l [ 34.510545] mt7915_apply_dpd_flatness_data: DPD Pre-Cal finished, load DPD Pre-Cal data [ 34.530400] AP OBSS SYNC - BBP R4 to 20MHz.l [ 34.840196] mt7915_apply_dpd_flatness_data: DPD Pre-Cal finished, load DPD Pre-Cal data [ 34.857951] AP OBSS SYNC - BBP R4 to 20MHz.l [ 35.170637] mt7915_apply_dpd_flatness_data: DPD Pre-Cal finished, load DPD Pre-Cal data [ 35.188399] AP OBSS SYNC - BBP R4 to 20MHz.l [ 35.500148] mt7915_apply_dpd_flatness_data: DPD Pre-Cal finished, load DPD Pre-Cal data [ 35.517811] AP OBSS SYNC - BBP R4 to 20MHz.l [ 35.830260] mt7915_apply_dpd_flatness_data: DPD Pre-Cal finished, load DPD Pre-Cal data [ 35.847923] AP OBSS SYNC - BBP R4 to 20MHz.l [ 36.160624] mt7915_apply_dpd_flatness_data: DPD Pre-Cal finished, load DPD Pre-Cal data [ 36.178214] AP OBSS SYNC - BBP R4 to 20MHz.l [ 36.490502] mt7915_apply_dpd_flatness_data: DPD Pre-Cal finished, load DPD Pre-Cal data [ 36.510106] AP OBSS SYNC - BBP R4 to 20MHz.l [ 36.820014] Channel[Idx=0, Ch=1].bEffectedChannel=0x2! [ 36.825234] Channel[Idx=1, Ch=2].bEffectedChannel=0x0! [ 36.830627] Channel[Idx=2, Ch=3].bEffectedChannel=0x0! [ 36.836022] Channel[Idx=3, Ch=4].bEffectedChannel=0x2! [ 36.841442] needFallBack=TRUE due to OP/OT! [ 36.845800] Channel[Idx=4, Ch=5].bEffectedChannel=0x2! [ 36.851158] needFallBack=TRUE due to OP/OT! [ 36.855420] Channel[Idx=5, Ch=6].bEffectedChannel=0x2! [ 36.860863] needFallBack=TRUE due to OP/OT! [ 36.865180] Channel[Idx=6, Ch=7].bEffectedChannel=0x0! [ 36.870562] Channel[Idx=7, Ch=8].bEffectedChannel=0x0! [ 36.876507] mt7915_apply_dpd_flatness_data: DPD Pre-Cal finished, load DPD Pre-Cal data [ 36.940508] ap_link_up(caller:APStartUpForMbss+0x448/0x6a4), wdev(0) [ 36.946914] wifi_sys_linkup, wdev idx = 0 [ 36.951219] wtc_acquire_groupkey_wcid: Found a non-occupied wtbl_idx:287 for WDEV_TYPE:1 [ 36.951219] LinkToOmacIdx = 0, LinkToWdevType = 1 [ 36.964602] TRTableInsertMcastEntry:band0 group_idx[0]=0 [ 36.970504] wifi_sys_linkup:wdev(type=0,func_idx=1,wdev_idx=0),BssIndex(0) [ 36.979105] hw_ctrl_flow_v2_link_up: wdev_idx=0 [ 36.983955] (bssUpdateChannel), ucPrimCh=1, ucCentChSeg0=3, ucCentChSeg1=0, BW=1, ucHetbRU26Disable=0, ucHetbAllDisable=1 [ 36.995124] bssUpdateBmcMngRate (BSS_INFO_BROADCAST_INFO), CmdBssInfoBmcRate.u2BcTransmit= 8320, CmdBssInfoBmcRate.u2McTransmit = 8320 [ 37.019606] UpdateBeaconHandler, BCN_UPDATE_INIT, OmacIdx = 0 (ra0) [ 37.026229] Band0 BcnInitedRnd = 31 [ 37.030619] MtCmdTxPowerSKUCtrl: tx_pwr_sku_en: 1, BandIdx: 0 [ 37.036629] MtCmdTxBfBackoffCtrl: fgTxBFBackoffEn: 1, BandIdx: 0 [ 37.043073] MtCmdTxPowerPercentCtrl: fgTxPowerPercentEn: 0, BandIdx: 0 [ 37.050073] TxCCKStreamCtrl: set wrong parameters [ 37.093471] set muru_update_he_cfg()!!!! [ 37.097558] PrintSrCmd: [ 37.097558] u1CmdSubId = 1, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0 [ 37.097558] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0 [ 37.112384] PrintSrCmd: [ 37.112384] u1CmdSubId = 5, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0 [ 37.112384] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0 [ 37.126913] PrintSrCmd: [ 37.126913] u1CmdSubId = 3, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0 [ 37.126913] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0 [ 37.141202] PrintSrCmd: [ 37.141202] u1CmdSubId = 23, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0 [ 37.141202] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0 [ 37.155776] apidx 0 for WscUUIDInit [ 37.159342] Generate UUID for apidx(0) [ 37.163399] WDS_Init():wds_num[0]=0, count=0, MAX_WDS_ENTRY=16, if_idx=0, flg_wds_init=0 [ 37.171972] Total allocated 0 WDS(es) for band0! [ 37.177746] extif_set_dev(ra0) [ 37.183912] add tx_src: 54:07:7d:7c:c5:14 [ 37.189698] add tx_src: 5e:07:7d:7c:c5:14 [ 37.194447] dnshijack_inetaddr_event 192.168.1.250 192.168.1.250 [ 37.248637] nf_unregister_hooks() [ 37.315571] add tx_src: 52:07:7d:7c:c5:14 [ 42.124788] ==>Set_PartialScan_Proc (wdev ra0) [ 42.129602] Set_PartialScan_Proc(): bScanning = 0, caller: RTMPAPPrivIoctlSet+0x1f8/0x2cc [ 42.165744] Set_ApCli_Enable_Proc : interface is not up, please do ifconfig apcli0 up first [ 42.752859] extif_put_dev(ra0) [ 42.760299] ra0: ===> main_virtual_if_close [ 42.764777] RTMP_COM_IoctlHandle -> CMD_RTPRIV_IOCTL_VIRTUAL_INF_DOWN [ 42.771589] ap_link_down(caller:ap_inf_close+0x3c/0x134), wdev(0) [ 42.778069] UpdateBeaconHandler, wdev(0) bss not ready (state:2, caller:ap_link_down+0xa0/0x100)!! [ 42.787458] wifi_sys_linkdown(), wdev idx = 0 [ 42.792022] wifi_sys_linkdown:wdev(type=1,func_idx=0,wdev_idx=0),BssIndex(0) [ 42.801413] hw_ctrl_flow_v2_link_down: wdev_idx=0 [ 42.811795] (bssUpdateChannel), ucPrimCh=1, ucCentChSeg0=3, ucCentChSeg1=0, BW=1, ucHetbRU26Disable=0, ucHetbAllDisable=1 [ 42.823403] bssUpdateBmcMngRate (BSS_INFO_BROADCAST_INFO), CmdBssInfoBmcRate.u2BcTransmit= 0, CmdBssInfoBmcRate.u2McTransmit = 0 [ 42.850919] wifi_sys_close, wdev idx = 0 [ 42.870040] hw_ctrl_flow_v2_close: wdev_idx=0 [ 42.875084] RTMP_COM_IoctlHandle -> CMD_RTPRIV_IOCTL_VIRTUAL_INF_DEINIT [ 42.882057] APStop(caller:APShutdown+0x64/0xc0), oper(0) bssid(0)=54:07:7d:7c:c5:14 [ 42.889990] ===> APStopByBss() mbss_idx 0 [ 42.894243] UpdateBeaconHandler, wdev(0) bss not ready (state:0, caller:APStopByBss+0x1f4/0x438)!! [ 42.904484] MacTableDeleteEntry(): wcid 0 ===== [ 42.909308] wifi_sys_disconn_act: Not enqueue!! entry->EntryState=0 [ 42.916436] ap_link_down(caller:APStopByBss+0x2b0/0x438), wdev(0) [ 42.922836] ap_link_down(caller:ap_inf_close+0x3c/0x134), wdev(0) [ 42.929188] wifi_sys_close, wdev idx = 0 [ 42.933455] wifi_sys_close: Not enqueue!! wpf_op=0 [ 42.938442] ap_ftkd> Release FT KDP Module... [ 42.943133] ===> APStopByBss() mbss_idx 1 [ 42.943325] MtCmdFdFrameOffloadSet(): Enable = 0, OwnMacIdx = 0, WlanIdx = 0, Band = 0, Len = 0 [ 42.956685] UpdateBeaconHandler, wdev(1) bss not ready (state:0, caller:APStopByBss+0x1f4/0x438)!! [ 42.966077] ap_link_down(caller:APStopByBss+0x2b0/0x438), wdev(1) [ 42.972885] ap_link_down(caller:ap_inf_close+0x3c/0x134), wdev(1) [ 42.979302] wifi_sys_close, wdev idx = 1 [ 42.983450] wifi_sys_close: Not enqueue!! wpf_op=0 [ 42.988537] ===> APStopByBss() mbss_idx 2 [ 42.988871] MtCmdFdFrameOffloadSet(): Enable = 0, OwnMacIdx = 0, WlanIdx = 0, Band = 0, Len = 0 [ 43.001860] UpdateBeaconHandler, wdev(2) bss not ready (state:0, caller:APStopByBss+0x1f4/0x438)!! [ 43.011383] ap_link_down(caller:APStopByBss+0x2b0/0x438), wdev(2) [ 43.017924] ap_link_down(caller:ap_inf_close+0x3c/0x134), wdev(2) [ 43.024330] wifi_sys_close, wdev idx = 2 [ 43.028422] wifi_sys_close: Not enqueue!! wpf_op=0 [ 43.033560] ===> APStopByBss() mbss_idx 3 [ 43.033568] MtCmdFdFrameOffloadSet(): Enable = 0, OwnMacIdx = 0, WlanIdx = 0, Band = 1, Len = 0 [ 43.047499] UpdateBeaconHandler, wdev(3) bss not ready (state:0, caller:APStopByBss+0x1f4/0x438)!! [ 43.056876] ap_link_down(caller:APStopByBss+0x2b0/0x438), wdev(3) [ 43.063370] ap_link_down(caller:ap_inf_close+0x3c/0x134), wdev(3) [ 43.069953] wifi_sys_close, wdev idx = 3 [ 43.074010] wifi_sys_close: Not enqueue!! wpf_op=0 [ 43.079668] proc_rps_file_close close proc file[/sys/class/net/eth0/queues/rx-0/rps_cpus] OK [ 43.080273] MtCmdFdFrameOffloadSet(): Enable = 0, OwnMacIdx = 0, WlanIdx = 0, Band = 1, Len = 0 [ 43.097293] proc_rps_file_close close proc file[/sys/class/net/ra0/queues/rx-0/rps_cpus] OK [ 43.106136] proc_rps_file_close close proc file[/sys/class/net/rax0/queues/rx-0/rps_cpus] OK [ 43.115064] proc_rps_file_close close proc file[/proc/irq/31/smp_affinity] OK [ 43.122663] proc_rps_file_close close proc file[/proc/sys/net/core/netdev_max_backlog] OK [ 43.131248] proc_rps_file_close close proc file[/sys/module/rcupdate/parameters/rcu_cpu_stall_timeout] OK [ 43.344779] [ 43.344779] RtmpMgmtTaskExit, pAd=c0301000 [ 43.351330] RT28xxPciAsicRadioOff(): Not support for HIF_MT yet! [ 43.357457] RTMPDrvClose call RT28xxPciAsicRadioOff fail !! [ 43.364445] tx_kickout_fail_count = 0 [ 43.368176] tx_timeout_fail_count = 0 [ 43.371958] rx_receive_fail_count = 0 [ 43.375691] alloc_cmd_msg = 3145 [ 43.379154] free_cmd_msg = 3145 [ 43.391794] token_tx_queue_destroy(): 8d721204,8d721204 [ 43.397501] token_tx_queue_destroy(): 8d7212ac,8d7212ac [ 43.404043] pci_fw_own_by_port: fw own to p(0) [ 43.408593] pci_fw_own_by_port: fw own to p(1) [ 43.423877] RTMP_AllTimerListRelease: Size=52 [ 43.428322] RTMP_AllTimerListRelease: Cancel timer obj c066b0c0! [ 43.434410] RTMP_AllTimerListRelease: Timer is allocated by UserCfgInit+0x1c4/0x14d4,Valid:1,Lock:c104ef88,State:0 [ 43.444874] RTMP_AllTimerListRelease: Cancel timer obj c0d9d944! [ 43.451123] RTMP_AllTimerListRelease: Timer is allocated by scan_partial_init+0x50/0xa0,Valid:1,Lock:c104ef88,State:0 [ 43.461877] RTMP_AllTimerListRelease: Cancel timer obj c0e6332c! [ 43.467997] RTMP_AllTimerListRelease: Timer is allocated by scan_partial_init+0x84/0xa0,Valid:1,Lock:c104ef88,State:0 [ 43.478726] RTMP_AllTimerListRelease: Cancel timer obj c0696d0c! [ 43.484911] RTMP_AllTimerListRelease: Timer is allocated by OceTimerInit+0x70/0x180,Valid:1,Lock:c104ef88,State:0 [ 43.495304] RTMP_AllTimerListRelease: Cancel timer obj c0696d44! [ 43.501460] RTMP_AllTimerListRelease: Timer is allocated by OceTimerInit+0x8c/0x180,Valid:1,Lock:c104ef88,State:0 [ 43.511844] RTMP_AllTimerListRelease: Cancel timer obj c069d5c0! [ 43.517958] RTMP_AllTimerListRelease: Timer is allocated by OceTimerInit+0x70/0x180,Valid:1,Lock:c104ef88,State:0 [ 43.528319] RTMP_AllTimerListRelease: Cancel timer obj c069d5f8! [ 43.534456] RTMP_AllTimerListRelease: Timer is allocated by OceTimerInit+0x8c/0x180,Valid:1,Lock:c104ef88,State:0 [ 43.544826] RTMP_AllTimerListRelease: Cancel timer obj c06a3e74! [ 43.550990] RTMP_AllTimerListRelease: Timer is allocated by OceTimerInit+0x70/0x180,Valid:1,Lock:c104ef88,State:0 [ 43.561400] RTMP_AllTimerListRelease: Cancel timer obj c06a3eac! [ 43.567535] RTMP_AllTimerListRelease: Timer is allocated by OceTimerInit+0x8c/0x180,Valid:1,Lock:c104ef88,State:0 [ 43.577908] RTMP_AllTimerListRelease: Cancel timer obj c06aa728! [ 43.584084] RTMP_AllTimerListRelease: Timer is allocated by OceTimerInit+0x70/0x180,Valid:1,Lock:c104ef88,State:0 [ 43.594496] RTMP_AllTimerListRelease: Cancel timer obj c06aa760! [ 43.600650] RTMP_AllTimerListRelease: Timer is allocated by OceTimerInit+0x8c/0x180,Valid:1,Lock:c104ef88,State:0 [ 43.611028] RTMP_AllTimerListRelease: Cancel timer obj c076cf68! [ 43.617176] RTMP_AllTimerListRelease: Timer is allocated by OceTimerInit+0x150/0x180,Valid:1,Lock:c104ef88,State:0 [ 43.627641] RTMP_AllTimerListRelease: Cancel timer obj c0d9d900! [ 43.633850] RTMP_AllTimerListRelease: Timer is allocated by sync_fsm_init+0x224/0x2dc,Valid:1,Lock:c104ef88,State:0 [ 43.644422] RTMP_AllTimerListRelease: Cancel timer obj c0e632e8! [ 43.650597] RTMP_AllTimerListRelease: Timer is allocated by sync_fsm_init+0x224/0x2dc,Valid:1,Lock:c104ef88,State:0 [ 43.661148] RTMP_AllTimerListRelease: Cancel timer obj c07c9e78! [ 43.667235] RTMP_AllTimerListRelease: Timer is allocated by WscInitClientTimers+0x50/0xc8,Valid:1,Lock:c104ef88,State:0 [ 43.678121] RTMP_AllTimerListRelease: Cancel timer obj c0a220d8! [ 43.684295] RTMP_AllTimerListRelease: Timer is allocated by WscInitClientTimers+0x50/0xc8,Valid:1,Lock:c104ef88,State:0 [ 43.695199] RTMP_AllTimerListRelease: Cancel timer obj c0696b54! [ 43.701344] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x7c/0x254,Valid:1,Lock:c104ef88,State:0 [ 43.711721] RTMP_AllTimerListRelease: Cancel timer obj c0696b88! [ 43.717887] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x94/0x254,Valid:1,Lock:c104ef88,State:0 [ 43.728266] RTMP_AllTimerListRelease: Cancel timer obj c069d408! [ 43.734662] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x7c/0x254,Valid:1,Lock:c104ef88,State:0 [ 43.744972] RTMP_AllTimerListRelease: Cancel timer obj c069d43c! [ 43.751118] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x94/0x254,Valid:1,Lock:c104ef88,State:0 [ 43.761401] RTMP_AllTimerListRelease: Cancel timer obj c06a3cbc! [ 43.767511] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x7c/0x254,Valid:1,Lock:c104ef88,State:0 [ 43.777784] RTMP_AllTimerListRelease: Cancel timer obj c06a3cf0! [ 43.783907] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x94/0x254,Valid:1,Lock:c104ef88,State:0 [ 43.794188] RTMP_AllTimerListRelease: Cancel timer obj c06aa570! [ 43.800332] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x7c/0x254,Valid:1,Lock:c104ef88,State:0 [ 43.810609] RTMP_AllTimerListRelease: Cancel timer obj c06aa5a4! [ 43.816746] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x94/0x254,Valid:1,Lock:c104ef88,State:0 [ 43.827040] RTMP_AllTimerListRelease: Cancel timer obj c06b0e24! [ 43.833179] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x7c/0x254,Valid:1,Lock:c104ef88,State:0 [ 43.843488] RTMP_AllTimerListRelease: Cancel timer obj c06b0e58! [ 43.849641] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x94/0x254,Valid:1,Lock:c104ef88,State:0 [ 43.860096] RTMP_AllTimerListRelease: Cancel timer obj c06b76d8! [ 43.866224] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x7c/0x254,Valid:1,Lock:c104ef88,State:0 [ 43.876515] RTMP_AllTimerListRelease: Cancel timer obj c06b770c! [ 43.882627] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x94/0x254,Valid:1,Lock:c104ef88,State:0 [ 43.892889] RTMP_AllTimerListRelease: Cancel timer obj c06bdf8c! [ 43.899013] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x7c/0x254,Valid:1,Lock:c104ef88,State:0 [ 43.909306] RTMP_AllTimerListRelease: Cancel timer obj c06bdfc0! [ 43.915447] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x94/0x254,Valid:1,Lock:c104ef88,State:0 [ 43.925721] RTMP_AllTimerListRelease: Cancel timer obj c06c4840! [ 43.931849] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x7c/0x254,Valid:1,Lock:c104ef88,State:0 [ 43.942128] RTMP_AllTimerListRelease: Cancel timer obj c06c4874! [ 43.948232] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x94/0x254,Valid:1,Lock:c104ef88,State:0 [ 43.958504] RTMP_AllTimerListRelease: Cancel timer obj c06cb0f4! [ 43.964631] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x7c/0x254,Valid:1,Lock:c104ef88,State:0 [ 43.974904] RTMP_AllTimerListRelease: Cancel timer obj c06cb128! [ 43.981037] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x94/0x254,Valid:1,Lock:c104ef88,State:0 [ 43.991321] RTMP_AllTimerListRelease: Cancel timer obj c06d19a8! [ 43.997449] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x7c/0x254,Valid:1,Lock:c104ef88,State:0 [ 44.007739] RTMP_AllTimerListRelease: Cancel timer obj c06d19dc! [ 44.013888] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x94/0x254,Valid:1,Lock:c104ef88,State:0 [ 44.024178] RTMP_AllTimerListRelease: Cancel timer obj c06d825c! [ 44.030340] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x7c/0x254,Valid:1,Lock:c104ef88,State:0 [ 44.040650] RTMP_AllTimerListRelease: Cancel timer obj c06d8290! [ 44.046778] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x94/0x254,Valid:1,Lock:c104ef88,State:0 [ 44.057072] RTMP_AllTimerListRelease: Cancel timer obj c06deb10! [ 44.063185] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x7c/0x254,Valid:1,Lock:c104ef88,State:0 [ 44.073442] RTMP_AllTimerListRelease: Cancel timer obj c06deb44! [ 44.079565] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x94/0x254,Valid:1,Lock:c104ef88,State:0 [ 44.089909] RTMP_AllTimerListRelease: Cancel timer obj c06e53c4! [ 44.096012] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x7c/0x254,Valid:1,Lock:c104ef88,State:0 [ 44.106283] RTMP_AllTimerListRelease: Cancel timer obj c06e53f8! [ 44.112403] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x94/0x254,Valid:1,Lock:c104ef88,State:0 [ 44.122680] RTMP_AllTimerListRelease: Cancel timer obj c06ebc78! [ 44.128784] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x7c/0x254,Valid:1,Lock:c104ef88,State:0 [ 44.139056] RTMP_AllTimerListRelease: Cancel timer obj c06ebcac! [ 44.145186] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x94/0x254,Valid:1,Lock:c104ef88,State:0 [ 44.157038] RTMP_AllTimerListRelease: Cancel timer obj c06f252c! [ 44.163194] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x7c/0x254,Valid:1,Lock:c104ef88,State:0 [ 44.173481] RTMP_AllTimerListRelease: Cancel timer obj c06f2560! [ 44.179606] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x94/0x254,Valid:1,Lock:c104ef88,State:0 [ 44.189975] RTMP_AllTimerListRelease: Cancel timer obj c06f8de0! [ 44.196125] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x7c/0x254,Valid:1,Lock:c104ef88,State:0 [ 44.206434] RTMP_AllTimerListRelease: Cancel timer obj c06f8e14! [ 44.212580] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x94/0x254,Valid:1,Lock:c104ef88,State:0 [ 44.222871] RTMP_AllTimerListRelease: Cancel timer obj c07c68cc! [ 44.228961] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x190/0x254,Valid:1,Lock:c104ef88,State:0 [ 44.239339] RTMP_AllTimerListRelease: Cancel timer obj c07c6900! [ 44.245706] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x1a8/0x254,Valid:1,Lock:c104ef88,State:0 [ 44.256149] RTMP_AllTimerListRelease: Cancel timer obj c0a1eb2c! [ 44.262281] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x190/0x254,Valid:1,Lock:c104ef88,State:0 [ 44.272653] RTMP_AllTimerListRelease: Cancel timer obj c0a1eb60! [ 44.278804] RTMP_AllTimerListRelease: Timer is allocated by RRM_CfgInit+0x1a8/0x254,Valid:1,Lock:c104ef88,State:0 [ 44.289451] pci_fw_own_by_port: fw own to p(0) [ 44.294100] pci_fw_own_by_port: fw own to p(1) [ 44.298863] <---HwCtrlThread [ 44.318415] mt_service_close: wlan service closes successfully! [ 44.345169] AndesSendCmdMsg: Could not send in band command due to diablefRTMP_ADAPTER_MCU_SEND_IN_BAND_CMD [ 44.355437] AndesSendCmdMsg: Command type = ed, Extension command type = 30 [ 44.362603] MtCmdGetTxStatistic:(ret = 1) [ 44.366837] AndesSendCmdMsg: Could not send in band command due to diablefRTMP_ADAPTER_MCU_SEND_IN_BAND_CMD [ 44.376820] AndesSendCmdMsg: Command type = ed, Extension command type = ad [ 44.384228] wlan_operate_get_ht_bw: op NULL [ 44.388615] wlan_operate_get_vht_bw: op NULL [ 44.393094] wlan_operate_get_ext_cha: op NULL [ 44.517957] AndesSendCmdMsg: Could not send in band command due to diablefRTMP_ADAPTER_MCU_SEND_IN_BAND_CMD [ 44.528241] AndesSendCmdMsg: Command type = ed, Extension command type = 30 [ 44.535673] MtCmdGetTxStatistic:(ret = 1) [ 44.540132] AndesSendCmdMsg: Could not send in band command due to diablefRTMP_ADAPTER_MCU_SEND_IN_BAND_CMD [ 44.550128] AndesSendCmdMsg: Command type = ed, Extension command type = ad [ 44.557646] wlan_operate_get_ht_bw: op NULL [ 44.562036] wlan_operate_get_vht_bw: op NULL [ 44.566562] wlan_operate_get_ext_cha: op NULL uci: Entry not found EAX15v2 login: [ 44.879758] Set_PartialScan_Proc(): bScanning = 0, caller: RTMPAPPrivIoctlSet+0x1f8/0x2cc [ 44.893496] Set_ApCli_Enable_Proc : interface is not up, please do ifconfig apclix0 up first [ 45.845813] ra0: ===> main_virtual_if_open [ 45.850103] RTMP_COM_IoctlHandle -> CMD_RTPRIV_IOCTL_VIRTUAL_INF_INIT [ 45.859350] load l1profile succeed! [ 45.863102] mt_service_open: wlan service opens successfully! [ 45.876566] APWdsInitialize():WdsEntry[0~15] [ 46.125599] [multi_profile_merge_5g_only] DBDC_MODE=1 [ 46.175400] multi-profile merge success, en:1,pf1_num:2,pf2_num:2,total:4 [ 46.182305] Open file "/etc/wireless/mediatek/DBDC_card0.dat" to store DBDC cfg! (23) [ 46.220733] Write file "/etc/wireless/mediatek/DBDC_card0.dat" success (size=7651)! [ 46.229766] BssidNum=4 [ 46.232270] Pf2MbssIdxMap: [ 46.235020] 0 1 2 3 [ 46.239281] MacAddress2 = 00:00:00:00:00:00 [ 46.246057] E2pAccessMode=2 [ 46.250154] SSID[0]=NETGEAR_EXT, EdcaIdx=0 [ 46.254595] SSID[1]=, EdcaIdx=0 [ 46.258259] SSID[2]=MTK_HARRIER_AP_5G, EdcaIdx=1 [ 46.263658] SSID[3]=, EdcaIdx=1 [ 46.267544] RTMPSetProfileParameters(): DBDC Mode=1, eDBDC_mode = 1 [ 46.275210] cfg_mode=16 [ 46.277725] cfg_mode=16 [ 46.280379] cfg_mode=16 [ 46.282998] wmode_band_equal(): Band Equal! [ 46.287330] cfg_mode=16 [ 46.289838] cfg_mode=16 [ 46.292453] cfg_mode=16 [ 46.295021] cfg_mode=17 [ 46.297583] cfg_mode=17 [ 46.300251] cfg_mode=17 [ 46.302783] cfg_mode=17 [ 46.306158] auto_ch_select_set_cfg(): BandIdx0, AutoChannelAtBootup=0, AutoChannelAlg = 0 [ 46.314480] auto_ch_select_set_cfg(): BandIdx1, AutoChannelAtBootup=0, AutoChannelAlg = 0 [ 46.323899] Index0 Channel=1 [ 46.326842] Index1 Channel=36 [ 46.332456] BandSteering=0 [ 46.335562] BndStrgBssIdx=1;0;1;0 [ 46.339518] [TxPower] BAND0: 100, BAND1: 100 [ 46.350518] [SKUenable] BAND0: 1, BAND1: 1 [ 46.354957] [SkuTableIdx]: 1 [ 46.358312] [CCKTxStream] BAND0: 4, BAND1: 0 [ 46.363101] [PERCENTAGEenable] BAND0: 0, BAND1: 0 [ 46.368566] [BFBACKOFFenable] BAND0: 1, BAND1: 1 [ 46.373722] [Disable160RuMu] BAND0: 1, BAND1: 1 [ 46.378766] [MaxRuOfdma] BAND0: 8, BAND1: 8 [ 46.383381] [MaxDLMuMimo] BAND0: 2, BAND1: 2 [ 46.388210] [MaxULMuMimo] BAND0: 2, BAND1: 2 [ 46.394591] profile: FragThreshold[0]=2346 [ 46.398744] profile: FragThreshold[1]=2346 [ 46.402997] profile: FragThreshold[2]=2346 [ 46.407213] profile: FragThreshold[3]=2346 [ 46.412548] APEdca0 [ 46.415020] Valid=1 [ 46.417156] APAifsn[0]=3 [ 46.419717] APAifsn[1]=7 [ 46.422357] APAifsn[2]=1 [ 46.424980] APAifsn[3]=1 [ 46.427645] APEdca1 [ 46.430457] Valid=1 [ 46.432621] APAifsn[0]=3 [ 46.435229] APAifsn[1]=7 [ 46.437838] APAifsn[2]=1 [ 46.440527] APAifsn[3]=1 [ 46.443110] APEdca2 [ 46.445790] APEdca3 [ 46.455133] BSSAifsn[0]=3 [ 46.457841] BSSAifsn[1]=7 [ 46.460572] BSSAifsn[2]=2 [ 46.463378] BSSAifsn[3]=2 [ 46.466992] BSSAifsn[0]=3 [ 46.469749] BSSAifsn[1]=7 [ 46.472632] BSSAifsn[2]=2 [ 46.475375] BSSAifsn[3]=2 [ 46.478654] BSSAifsn[0]=3 [ 46.481408] BSSAifsn[1]=7 [ 46.484180] BSSAifsn[2]=2 [ 46.486910] BSSAifsn[3]=2 [ 46.490145] BSSAifsn[0]=3 [ 46.492848] BSSAifsn[1]=7 [ 46.495543] BSSAifsn[2]=2 [ 46.498241] BSSAifsn[3]=2 [ 46.502130] UAPSDCapable[0]=1 [ 46.505217] UAPSDCapable[1]=1 [ 46.508474] default ApCliUAPSDCapable[0]=1 [ 46.512890] default ApCliUAPSDCapable[1]=1 [ 46.521860] DfsZeroWait Support=0/0 [ 46.528378] DfsZeroWaitCacTime=255/255 [ 46.534208] read_itxbf: ITxBfEn = 1 [ 46.537774] read_itxbf: BSSID[0] [ 46.541213] read_itxbf: MBSS[0] ITxBfEn = 1 [ 46.545515] read_itxbf: ITxBfEn = 1 [ 46.549116] read_itxbf: BSSID[1] [ 46.552551] read_itxbf: MBSS[1] ITxBfEn = 1 [ 46.556834] read_itxbf: ITxBfEn = 1 [ 46.560466] read_itxbf: BSSID[2] [ 46.563780] read_itxbf: MBSS[2] ITxBfEn = 1 [ 46.568058] read_itxbf: ITxBfEn = 1 [ 46.571724] read_itxbf: BSSID[3] [ 46.575024] read_itxbf: MBSS[3] ITxBfEn = 1 [ 46.579281] read_itxbf: Common.ITxBfEn = 1 [ 46.583970] read_etxbf: ETxBfEnCond = 1 [ 46.587866] read_etxbf: BSSID[0] [ 46.591233] read_etxbf: MBSS[0] ETxBfEnCond = 1 [ 46.595860] read_etxbf: ETxBfEnCond = 1 [ 46.599790] read_etxbf: BSSID[1] [ 46.603216] read_etxbf: MBSS[1] ETxBfEnCond = 1 [ 46.607831] read_etxbf: ETxBfEnCond = 1 [ 46.611822] read_etxbf: BSSID[2] [ 46.615126] read_etxbf: MBSS[2] ETxBfEnCond = 1 [ 46.619777] read_etxbf: ETxBfEnCond = 1 [ 46.623822] read_etxbf: BSSID[3] [ 46.627139] read_etxbf: MBSS[3] ETxBfEnCond = 1 [ 46.632652] HeraStbcPriority[0] = 0 [ 46.636208] HeraStbcPriority[1] = 0 [ 46.643245] MBSS[0] MuOfdmaDlEnable = 1 [ 46.647160] MBSS[1] MuOfdmaDlEnable = 1 [ 46.651202] MBSS[2] MuOfdmaDlEnable = 1 [ 46.655155] MBSS[3] MuOfdmaDlEnable = 1 [ 46.659550] MBSS[0] MuOfdmaUlEnable = 1 [ 46.663506] MBSS[1] MuOfdmaUlEnable = 1 [ 46.667414] MBSS[2] MuOfdmaUlEnable = 1 [ 46.671394] MBSS[3] MuOfdmaUlEnable = 1 [ 46.675943] MBSS[0] MuMimoDlEnable = 1 [ 46.679771] MBSS[1] MuMimoDlEnable = 1 [ 46.683687] MBSS[2] MuMimoDlEnable = 1 [ 46.687526] MBSS[3] MuMimoDlEnable = 1 [ 46.691784] MBSS[0] MuMimoUlEnable = 1 [ 46.695629] MBSS[1] MuMimoUlEnable = 1 [ 46.699476] MBSS[2] MuMimoUlEnable = 1 [ 46.703433] MBSS[3] MuMimoUlEnable = 1 [ 46.707822] [RTMPSetProfileParameters]Disable DFS/Zero wait=0/0 [ 46.759060] [PMF]Set_PMFMFPC_Proc:: apidx=0, Desired MFPC=0 [ 46.764760] [PMF]Set_PMFMFPC_Proc:: apidx=1, Desired MFPC=0 [ 46.770491] [PMF]Set_PMFMFPC_Proc:: apidx=2, Desired MFPC=0 [ 46.776199] [PMF]Set_PMFMFPC_Proc:: apidx=3, Desired MFPC=0 [ 46.782308] [PMF]Set_PMFMFPR_Proc:: apidx=0, Desired MFPR=0 [ 46.787982] [PMF]Set_PMFMFPR_Proc:: apidx=1, Desired MFPR=0 [ 46.793722] [PMF]Set_PMFMFPR_Proc:: apidx=2, Desired MFPR=0 [ 46.799332] [PMF]Set_PMFMFPR_Proc:: apidx=3, Desired MFPR=0 [ 46.805385] [PMF]Set_PMFSHA256_Proc:: apidx=0, Desired PMFSHA256=0 [ 46.811773] [PMF]Set_PMFSHA256_Proc:: apidx=1, Desired PMFSHA256=0 [ 46.818026] [PMF]Set_PMFSHA256_Proc:: apidx=2, Desired PMFSHA256=0 [ 46.824351] [PMF]Set_PMFSHA256_Proc:: apidx=3, Desired PMFSHA256=0 [ 46.832610] ReadMboParameterFromFile::(bMboEnable[0]=1, MboCapIndication = 0x40) [ 46.840114] ReadMboParameterFromFile::(bMboEnable[1]=1, MboCapIndication = 0x40) [ 46.847618] ReadMboParameterFromFile::(bMboEnable[2]=1, MboCapIndication = 0x40) [ 46.855188] ReadMboParameterFromFile::(bMboEnable[3]=1, MboCapIndication = 0x40) [ 46.863314] ReadMboParameterFromFile::(bMboEnable[0]=1) [ 46.868652] ReadMboParameterFromFile::(bMboEnable[1]=1) [ 46.874343] MAP_MODE=0 [ 46.879294] ApCliEntry[0].Enable=0 [ 46.882786] ApCliEntry[1].Enable=0 [ 46.886583] ApCliEntry[0].CfgSsidLen=15, CfgSsid=12345678NETGEAR [ 46.893093] ApCliEntry[1].CfgSsidLen=18, CfgSsid=12345678NETGEAR-5G [ 46.903635] [PMF]Set_ApCliPMFMFPC_Proc:: Desired MFPC=0 [ 46.908930] [PMF]Set_ApCliPMFMFPC_Proc:: MFPC=0, MFPR=0, SHA256=0 [ 46.915238] [PMF]Set_ApCliPMFMFPC_Proc:: Desired MFPC=0 [ 46.920625] [PMF]Set_ApCliPMFMFPC_Proc:: MFPC=0, MFPR=0, SHA256=0 [ 46.927344] [PMF]Set_ApCliPMFMFPR_Proc:: Desired MFPR=0 [ 46.932754] [PMF]Set_ApCliPMFMFPR_Proc:: MFPC=0, MFPR=0, SHA256=0 [ 46.938994] [PMF]Set_ApCliPMFMFPR_Proc:: Desired MFPR=0 [ 46.944385] [PMF]Set_ApCliPMFMFPR_Proc:: MFPC=0, MFPR=0, SHA256=0 [ 46.951271] [PMF]Set_ApCliPMFSHA256_Proc:: Desired PMFSHA256=0 [ 46.957193] [PMF]Set_ApCliPMFSHA256_Proc:: Desired PMFSHA256=0 [ 46.963769] APCLI[0] ApCliMuOfdmaDlEnable = 1 [ 46.968243] APCLI[1] ApCliMuOfdmaDlEnable = 1 [ 46.973102] APCLI[0] ApCliMuOfdmaUlEnable = 0 [ 46.977516] APCLI[1] ApCliMuOfdmaUlEnable = 0 [ 46.982401] APCLI[0] ApCliMuMimoDlEnable = 0 [ 46.986776] APCLI[1] ApCliMuMimoDlEnable = 0 [ 46.991671] APCLI[0] ApCliMuMimoUlEnable = 0 [ 46.996001] APCLI[1] ApCliMuMimoUlEnable = 0 [ 47.001108] rtmp_read_wds_from_file(): WDS Profile [ 47.006598] WDS Number: band[0]=0, band[1]=0 [ 47.011505] WDS-Enable mode=0 [ 47.014561] WDS-Enable mode=0 [ 47.018720] If/wds0 - PeerPhyMode=0xb1 [ 47.022589] If/wds1 - PeerPhyMode=0xb1 [ 47.027989] AsicSetReptFuncEnable, caller:RTMPSetProfileParameters+0xba30/0x11244 [ 47.035690] RepeaterCtrlExit, wrong state(0,0) [ 47.040292] Band_0_RpEn(0),RpEnByAnyBnd(0),RpEn(0) [ 47.045221] AndesSendCmdMsg: Could not send in band command due to diablefRTMP_ADAPTER_MCU_SEND_IN_BAND_CMD [ 47.055149] AndesSendCmdMsg: Command type = ed, Extension command type = 48 [ 47.062301] MACRepeaterEn=0 Band=0 [ 47.065844] AsicSetReptFuncEnable, caller:RTMPSetProfileParameters+0xba30/0x11244 [ 47.073505] RepeaterCtrlExit, wrong state(0,0) [ 47.078028] Band_1_RpEn(0),RpEnByAnyBnd(0),RpEn(0) [ 47.082976] AndesSendCmdMsg: Could not send in band command due to diablefRTMP_ADAPTER_MCU_SEND_IN_BAND_CMD [ 47.092862] AndesSendCmdMsg: Command type = ed, Extension command type = 48 [ 47.099965] MACRepeaterEn=0 Band=1 [ 47.110367] HT_BAWinSize: wdev[0]: (TX=256, RX=256) [ 47.115336] HT_BAWinSize: wdev[1]: (TX=256, RX=256) [ 47.120439] HT_BAWinSize: wdev[2]: (TX=256, RX=256) [ 47.125406] HT_BAWinSize: wdev[3]: (TX=256, RX=256) [ 47.131496] HT: WDEV[0] Ext Channel = ABOVE [ 47.135723] HT: WDEV[1] Ext Channel = ABOVE [ 47.140026] HT: WDEV[2] Ext Channel = ABOVE [ 47.144293] HT: WDEV[3] Ext Channel = ABOVE [ 47.149099] HT: greenap_cap = 0 [ 47.152913] ChipI=7915, Value=0, pcie_aspm in profile=0 [ 47.158678] 0:ra0 TWTsupport = 0 [ 47.162052] 1:ra1 TWTsupport = 0 [ 47.165364] 2:rax0 TWTsupport = 0 [ 47.168759] 3:rax1 TWTsupport = 0 [ 47.252126] ICapMode = 0 [ 47.265847] KernelRps --> 1 [ 47.274737] WtcSetMaxStaNum: MaxStaNum:232, BssidNum:4, WdsNum:16, MSTANum:2, MaxNumChipRept:32, MinMcastWcid:282 [ 47.285165] Top Init Done! [ 47.287941] Use dev_alloc_skb [ 47.291018] token_tx_two_queues_init(): ct sw token(0) number = 2048 [ 47.297617] token_tx_two_queues_init(): token que(0) inited done!id_head/tail=0/2048 [ 47.305572] token_tx_two_queues_init(): 8c90cc04,8c90cc04 [ 47.311141] token_tx_two_queues_init(): ct sw token(1) number = 6144 [ 47.318315] token_tx_two_queues_init(): token que(1) inited done!id_head/tail=0/6144 [ 47.326270] token_tx_two_queues_init(): 8c90ccac,8c90ccac [ 47.337700] TxRing[0]: attr:0, total 2048 entry initialized [ 47.347799] TxRing[1]: attr:0, total 2048 entry initialized [ 47.357928] TxRing[2]: attr:0, total 2048 entry initialized [ 47.364075] RX[0] DESC a0c48000 size = 24576 [ 47.372597] RX[1] DESC a0c10000 size = 16384 [ 47.378932] RX[2] DESC a0df0000 size = 24576 [ 47.387409] RX[3] DESC a0df8000 size = 24576 [ 47.391951] RX[4] DESC a0dde000 size = 8192 [ 47.397350] RX[5] DESC a0e10000 size = 16384 [ 47.403739] RX[6] DESC a0e14000 size = 8192 [ 47.409366] -->TX_RING_0[0xd9330]: Attr:0, Base=0xc40000, Cnt=2048! [ 47.415824] -->TX_RING_1[0xd5420]: Attr:0, Base=0xde0000, Cnt=2048! [ 47.422304] -->TX_RING_2[0xd5430]: Attr:0, Base=0xde8000, Cnt=2048! [ 47.428685] -->TX_RING_3[0xd5400]: Attr:3, Base=0xdd7000, Cnt=128! [ 47.435044] -->TX_RING_4[0xd5410]: Attr:2, Base=0xddc000, Cnt=256! [ 47.441429] -->TX_RING_5[0xd5440]: Attr:1, Base=0xddd000, Cnt=256! [ 47.447787] -->RX_RING_0[0xd8510]: Base=0xc48000, Cnt=1536 [ 47.453462] -->RX_RING_1[0xd9520]: Base=0xc10000, Cnt=1024 [ 47.459117] -->RX_RING_2[0xd4500]: Base=0xdf0000, Cnt=1536 [ 47.464755] -->RX_RING_3[0xd4510]: Base=0xdf8000, Cnt=10 [ 47.470190] -->RX_RING_4[0xd5500]: Base=0xdde000, Cnt=512 [ 47.475730] -->RX_RING_5[0xd5510]: Base=0xe10000, Cnt=1024 [ 47.481403] -->RX_RING_6[0xd5520]: Base=0xe14000, Cnt=512 [ 47.486898] Hif Init Done! [ 47.493385] pci_driver_own_by_port: success to clear p=0 fw own, from(1): 1 is interrupt mode, 2 is polling mode. [ 47.504775] pci_driver_own_by_port: success to clear p=1 fw own, from(1): 1 is interrupt mode, 2 is polling mode. [ 47.515205] fw_prepare():using E2 ROM patch [ 47.519462] fw_prepare():using E2 RAM [ 47.523312] Parsing patch header [ 47.526644] Built date: 20210309102249a [ 47.530840] [ 47.532405] Platform: ALPS [ 47.535319] HW/SW version: 0x8a108a10 [ 47.539232] Patch version: 0xffffffff [ 47.543378] Section num: 0x2, subsys: 0x4 [ 47.547712] Section 0: type = 0x30002, offset = 0xe0, size = 0xfc90 [ 47.554403] Target address: 0x200000, length: 0xfc90 [ 47.559672] Section 1: type = 0x30002, offset = 0xfd70, size = 0x13730 [ 47.566571] Target address: 0xe000f000, length: 0x13730 [ 47.572361] Patch SEM Status = 1 [ 47.576584] patch is ready, continue to ILM/DLM DL [ 47.581615] [42m WfMcuHwInit: Before NICLoadFirmware, check ICapMode = 0 [m [ 47.588897] Parsing CPU 0 fw tailer [ 47.592565] Chip ID: 0x0b [ 47.595418] Eco version: 0x01 [ 47.598539] Region number: 0x07 [ 47.601979] Format version: 0x02 [ 47.605474] Format flag: 0x01 [ 47.608698] Ram version: ____000000 [ 47.612563] Built date: 20210309102410 [ 47.616523] Common crc: 0x476d661d [ 47.620154] Parsing tailer region 0 [ 47.623814] Decomp crc: 0x0 [ 47.626853] Decomp size: 0x0 [ 47.629863] Decomp block size: 0x0 [ 47.633551] Target address: 0x21fc00 [ 47.637247] Download size: 110592 [ 47.640822] Feature set: 0x20 [ 47.643932] Parsing tailer region 1 [ 47.647451] Decomp crc: 0x0 [ 47.650477] Decomp size: 0x0 [ 47.653543] Decomp block size: 0x0 [ 47.657127] Target address: 0x31dc00 [ 47.660871] Download size: 205824 [ 47.664307] Feature set: 0x00 [ 47.667445] Parsing tailer region 2 [ 47.671005] Decomp crc: 0x0 [ 47.673959] Decomp size: 0x0 [ 47.676959] Decomp block size: 0x0 [ 47.680519] Target address: 0x417400 [ 47.684214] Download size: 31744 [ 47.687547] Feature set: 0x00 [ 47.690725] Parsing tailer region 3 [ 47.694271] Decomp crc: 0x0 [ 47.697228] Decomp size: 0x0 [ 47.700309] Decomp block size: 0x0 [ 47.703834] Target address: 0xe0022800 [ 47.707701] Download size: 411136 [ 47.711184] Feature set: 0x00 [ 47.714349] Parsing tailer region 4 [ 47.717861] Decomp crc: 0x0 [ 47.720837] Decomp size: 0x0 [ 47.723840] Decomp block size: 0x0 [ 47.727361] Target address: 0xe0086e00 [ 47.731275] Download size: 332288 [ 47.734737] Feature set: 0x00 [ 47.737864] Parsing tailer region 5 [ 47.741456] Decomp crc: 0x0 [ 47.744382] Decomp size: 0x0 [ 47.747379] Decomp block size: 0x0 [ 47.750936] Target address: 0x23ac00 [ 47.754660] Download size: 87040 [ 47.758026] Feature set: 0x00 [ 47.761171] Parsing tailer region 6 [ 47.764691] Decomp crc: 0x0 [ 47.767596] Decomp size: 0x0 [ 47.770692] Decomp block size: 0x0 [ 47.774221] Target address: 0x400000 [ 47.777917] Download size: 81920 [ 47.781293] Feature set: 0x00 [ 47.784387] Release info: header tag = 0, total length = 64 [ 47.790137] tag 1, padding length = 2, tag length = 58 [ 47.795388] payload: t-neptune-mp-mt7915-2045-MT7915_MP_7_4_2045-20210309101903 [ 47.803226] Start address = 0x21fc00, DL length = 110592, Data mode = 0x80000000 [ 47.811974] EventGenericEventHandler: CMD Success [ 47.817346] MtCmdAddressLenReq:(ret = 0) [ 47.822896] Start address = 0x31dc00, DL length = 205824, Data mode = 0x80000000 [ 47.831713] EventGenericEventHandler: CMD Success [ 47.836604] MtCmdAddressLenReq:(ret = 0) [ 47.843502] Start address = 0x417400, DL length = 31744, Data mode = 0x80000000 [ 47.852182] EventGenericEventHandler: CMD Success [ 47.860038] MtCmdAddressLenReq:(ret = 0) [ 47.864496] Start address = 0xe0022800, DL length = 411136, Data mode = 0x80000000 [ 47.873555] EventGenericEventHandler: CMD Success [ 47.878350] MtCmdAddressLenReq:(ret = 0) [ 47.887597] Start address = 0xe0086e00, DL length = 332288, Data mode = 0x80000000 [ 47.896529] EventGenericEventHandler: CMD Success [ 47.901293] MtCmdAddressLenReq:(ret = 0) [ 47.909088] Start address = 0x23ac00, DL length = 87040, Data mode = 0x80000000 [ 47.918018] EventGenericEventHandler: CMD Success [ 47.922792] MtCmdAddressLenReq:(ret = 0) [ 47.927931] Start address = 0x400000, DL length = 81920, Data mode = 0x80000000 [ 47.936758] EventGenericEventHandler: CMD Success [ 47.941544] MtCmdAddressLenReq:(ret = 0) [ 47.946445] MtCmdFwStartReq: override = 0x1, address = 0x21fc00 [ 47.953880] EventGenericEventHandler: CMD Success [ 47.958657] Parsing CPU 1 fw tailer [ 47.962238] Chip ID: 0x00 [ 47.965009] Eco version: 0x01 [ 47.968114] Region number: 0x03 [ 47.971498] Format version: 0x02 [ 47.974928] Format flag: 0x01 [ 47.978078] Ram version: DEV_000000 [ 47.982040] Built date: 20210309102442 [ 47.986159] Common crc: 0x545be6a7 [ 47.989687] Parsing tailer region 0 [ 47.993327] Decomp crc: 0x0 [ 47.996309] Decomp size: 0x0 [ 47.999319] Decomp block size: 0x0 [ 48.002935] Target address: 0x10200000 [ 48.006862] Download size: 88384 [ 48.010267] Feature set: 0x00 [ 48.013403] Parsing tailer region 1 [ 48.016946] Decomp crc: 0x0 [ 48.019928] Decomp size: 0x0 [ 48.022929] Decomp block size: 0x0 [ 48.026458] Target address: 0x10300000 [ 48.030385] Download size: 19504 [ 48.033739] Feature set: 0x00 [ 48.036888] Parsing tailer region 2 [ 48.040452] Decomp crc: 0x0 [ 48.043391] Decomp size: 0x0 [ 48.046394] Decomp block size: 0x0 [ 48.049981] Target address: 0xe0000000 [ 48.053864] Download size: 8768 [ 48.057114] Feature set: 0x00 [ 48.060312] Release info: header tag = 0, total length = 0 [ 48.065988] Start address = 0x10200000, DL length = 88384, Data mode = 0x80000010 [ 48.074936] EventGenericEventHandler: CMD Success [ 48.079723] MtCmdAddressLenReq:(ret = 0) [ 48.084855] Start address = 0x10300000, DL length = 19504, Data mode = 0x80000010 [ 48.093743] EventGenericEventHandler: CMD Success [ 48.098538] MtCmdAddressLenReq:(ret = 0) [ 48.103052] Start address = 0xe0000000, DL length = 8768, Data mode = 0x80000010 [ 48.111846] EventGenericEventHandler: CMD Success [ 48.116657] MtCmdAddressLenReq:(ret = 0) [ 48.120917] MtCmdFwStartReq: override = 0x4, address = 0x0 [ 48.225844] EventGenericEventHandler: CMD Success [ 48.230698] MCU Init Done! [ 48.233496] efuse_probe: efuse = 10000012 [ 48.237634] RtmpChipOpsEepromHook::e2p_type=2, inf_Type=5 [ 48.243163] RtmpEepromGetDefault::e2p_dafault=1 [ 48.247834] RtmpChipOpsEepromHook: E2P type(2), E2pAccessMode = 2, E2P default = 1 [ 48.255553] NVM is FLASH mode. dev_idx [0] FLASH OFFSET [0x0] [ 48.261453] [42mrtmp_nv_init(): EEPROM Size[131072][m [ 48.272321] [42m[EEPROMImage - PreCalImageInfo - PreCalImage - TxDPDImage][m [ 48.272321] [42m[0x8b160000 - 0x8b160e00 - 0x8b160e10 - 0x8b16d220][m [ 48.286357] validFlashEepromID(): eeFlashId=7915, pAd->ChipID=7915 [ 48.294386] [32m[d-die version:1][m [ 48.343643] [32m[a-die version:2][m [ 48.513852] [ 48.515428] [34mNICReadEEPROMParameters: EEPROM 0x62 7[m [ 48.521075] NICReadEEPROMParameters: Group Pre-Cal finished, load Group Pre-Cal data [ 48.531721] NICReadEEPROMParameters: DPD 5G Pre-Cal finished! [ 48.537604] NICReadEEPROMParameters: DPD 2G Pre-Cal finished! [ 48.677774] Country Region from e2p = 0 [ 48.681740] antenna_default_reset() todo [ 48.685756] antenna_default_reset() value = 0x5292, TxPath = 2, RxPath = 2 [ 48.692778] RTMPReadTxPwrPerRate(458): Don't Support this now! [ 48.698751] rc_radio_init(): DBDC MODE=1, ConcurrentBand=2 [ 48.704462] rc_radio_init(): radio_ctrl=8eb69710,Band=0,rfcap=3,channel=1,PhyMode=2 extCha=0xf [ 48.713263] rc_radio_init(): radio_ctrl=8eb69a68,Band=1,rfcap=3,channel=1,PhyMode=2 extCha=0xf [ 48.722179] ucAction = 0, ucBandIdx = 0, ucSmthIntlBypass = 0 [ 48.728060] ucAction = 0, ucBandIdx = 1, ucSmthIntlBypass = 0 [ 48.734007] AntCfgInit(2858): Not support for HIF_MT yet! [ 48.739473] mt7915_check_RF_lock_down: RFlockDown Enable: 0 [ 48.745198] [34mMtReadPwrLimitTable: sku table idx: 1 [0mmt7915_check_RF_lock_down: RFlockDown Enable: 0 [ 48.766558] mt7915_check_RF_lock_down: RFlockDown Enable: 0 [ 48.772276] [34mMtReadPwrLimitTable: sku table idx: 1 [0mmt7915_check_RF_lock_down: RFlockDown Enable: 0 [ 48.789061] EEPROM Init Done! [ 48.792185] mac_init()--> [ 48.794848] init_mac_cr()--> [ 48.797762] <--mac_init() [ 48.803853] CmdRxHdrTransBLUpdateRsp::EventExtCmdResult.u4Status = 0x0 [ 48.812328] CmdRxHdrTransBLUpdateRsp::EventExtCmdResult.u4Status = 0x0 [ 48.820827] CmdRxHdrTransBLUpdateRsp::EventExtCmdResult.u4Status = 0x0 [ 48.827494] MAC Init Done! [ 48.830333] BBPInit():BBP Initialization..... [ 48.834772] Band 0: valid=1, Band=2, CBW=1, CentCh/PrimCh=1/1, prim_ch_idx=0, txStream=2 [ 48.843048] Band 1: valid=0, Band=0, CBW=0, CentCh/PrimCh=0/0, prim_ch_idx=0, txStream=0 [ 48.851386] BBPInit() todo [ 48.854161] PHY Init Done! [ 48.870200] [ 48.870200] led_send_fw_cmd: [ 48.870210] tx_pwr_comp_init():NotSupportYet! [ 48.870244] Set_SCSDefaultEnable(): BandIdx=0, SCSEnable=1 [ 48.870319] Set_SCSDefaultEnable(): BandIdx=1, SCSEnable=1 [ 48.870489] MtCmdSetMacTxRx:(ret = 0) [ 48.870658] MtCmdSetMacTxRx:(ret = 0) [ 48.871103] ap_ftkd> Initialize FT KDP Module... [ 48.871143] Main bssid = 54:07:7d:7c:c5:14 [ 48.871166] SetMuruPlatformTypeProc: param.ucPlatformType = 2 [ 48.871244] muru_cfg_dlul_limits:(Ret = 1 [ 48.871272] muru_cfg_dlul_limits:(Ret = 1 [ 48.871639] MtCmdSetMacTxRx:(ret = 0) [ 48.871809] MtCmdSetMacTxRx:(ret = 0) [ 48.871853] <==== mt_wifi_init, Status=0 [ 48.871935] CmdHeraStbcPriorityCtrl: u1BandIdx=0, u1Operation=1, u1StbcPriority=0 [ 48.871966] CmdHeraStbcPriorityCtrl: u1BandIdx=1, u1Operation=1, u1StbcPriority=0 [ 48.872006] MSTA_Init re-assign MSTANum=2 [ 48.872073] mt_service_init: wlan service inits successfully! [ 48.872087] WtcSetMaxStaNum: MaxStaNum:232, BssidNum:4, WdsNum:16, MSTANum:2, MaxNumChipRept:32, MinMcastWcid:282 [ 48.967327] 0205000000240000 led_0 map to gpio_18... [ 48.972809] [ 48.972809] led_send_fw_cmd: [ 48.977329] 0205010000340000 led_1 map to gpio_26... [ 49.025840] RedInit: set CR4/N9 RED Enable to 1. [ 49.030570] RedInit: RED Initiailize Done. [ 49.035016] proc_rps_file_open open proc file[/sys/class/net/eth0/queues/rx-0/rps_cpus] OK [ 49.043534] proc_rps_file_open open proc file[/sys/class/net/ra0/queues/rx-0/rps_cpus] OK [ 49.052089] proc_rps_file_open open proc file[/sys/class/net/rax0/queues/rx-0/rps_cpus] OK [ 49.060645] proc_rps_file_open open proc file[/proc/irq/31/smp_affinity] OK [ 49.067898] proc_rps_file_open open proc file[/proc/sys/net/core/netdev_max_backlog] OK [ 49.076387] proc_rps_file_open open proc file[/sys/module/rcupdate/parameters/rcu_cpu_stall_timeout] OK [ 49.086601] cp_support_is_enabled: set CR4 CP_SUPPORT to Mode 2. [ 49.092729] RTMP_COM_IoctlHandle -> CMD_RTPRIV_IOCTL_VIRTUAL_INF_UP [ 49.099078] wifi_sys_open(), wdev idx = 0 [ 49.103330] ucAction = 0, ucBandIdx = 0, ucSmthIntlBypass = 0 [ 49.109168] ucAction = 0, ucBandIdx = 1, ucSmthIntlBypass = 0 [ 49.115079] BuildChannelList() BandIdx = 0, PhyMode = 78, ChListNum = 11: [ 49.122054] phy_oper_init(): operate TxStream = 2, RxStream = 2 [ 49.128313] mt7915_apply_dpd_flatness_data: DPD Pre-Cal finished, load DPD Pre-Cal data [ 49.146818] Caller: wlan_operate_init+0x100/0x114 [ 49.151639] [ 49.151639] phy_mode=78, ch=1, wdev_type=1 [ 49.157242] ht_cap: ht_cap->HtCapInfo, [ 49.161236] ldpc=1,ch_width=1,gf=0,sgi20=1,sgi40=1,tx_stbc=1,rx_stbc=1,amsdu_size=1 [ 49.169108] ht_cap: ht_cap->HtCapParm, [ 49.173175] mdpu_density=5, ampdu_factor=3 [ 49.177685] hw_ctrl_flow_v2_open: wdev_idx=0 [ 49.182451] AP inf up for ra_0(func_idx) OmacIdx=0 [ 49.187925] AsicRadioOnOffCtrl(): DbdcIdx=0 RadioOn [ 49.193699] ApAutoChannelAtBootUp-----------------> [ 49.198628] ApAutoChannelAtBootUp: AutoChannelBootup[0] = 0 [ 49.204587] MtCmdSetMacTxRx:(ret = 0) [ 49.208536] MtCmdSetMacTxRx:(ret = 0) [ 49.212348] [41m ap_run_at_boot() : ACS is disable !![m [ 49.217777] ===> APStartUpForMbss(caller:ap_inf_open+0x178/0x1e0), mbss_idx:0, CfgMode:177 [ 49.226194] [PMF]APPMFInit:: apidx=0, MFPC=0, MFPR=0, SHA256=0 [ 49.232258] Caller: SetCommonHT+0x100/0x170 [ 49.236722] [ 49.236722] phy_mode=78, ch=1, wdev_type=1 [ 49.242448] ht_cap: ht_cap->HtCapInfo, [ 49.246570] ldpc=1,ch_width=1,gf=0,sgi20=1,sgi40=1,tx_stbc=1,rx_stbc=1,amsdu_size=1 [ 49.254375] ht_cap: ht_cap->HtCapParm, [ 49.258414] mdpu_density=5, ampdu_factor=3 [ 49.262697] Enable 20/40 BSSCoex Channel Scan(BssCoex=1) [ 49.268424] MtCmdSetMacTxRx:(ret = 0) [ 49.272601] MtCmdSetMacTxRx:(ret = 0) [ 49.276607] mt7915_apply_dpd_flatness_data: DPD Pre-Cal finished, load DPD Pre-Cal data [ 49.294339] AP OBSS SYNC - BBP R4 to 20MHz.l [ 49.600199] mt7915_apply_dpd_flatness_data: DPD Pre-Cal finished, load DPD Pre-Cal data [ 49.617737] AP OBSS SYNC - BBP R4 to 20MHz.l [ 49.930192] mt7915_apply_dpd_flatness_data: DPD Pre-Cal finished, load DPD Pre-Cal data [ 49.947500] AP OBSS SYNC - BBP R4 to 20MHz.l [ 50.260216] mt7915_apply_dpd_flatness_data: DPD Pre-Cal finished, load DPD Pre-Cal data [ 50.277637] AP OBSS SYNC - BBP R4 to 20MHz.l [ 50.590267] mt7915_apply_dpd_flatness_data: DPD Pre-Cal finished, load DPD Pre-Cal data [ 50.607719] AP OBSS SYNC - BBP R4 to 20MHz.l [ 50.920226] mt7915_apply_dpd_flatness_data: DPD Pre-Cal finished, load DPD Pre-Cal data [ 50.937615] AP OBSS SYNC - BBP R4 to 20MHz.l [ 51.250179] mt7915_apply_dpd_flatness_data: DPD Pre-Cal finished, load DPD Pre-Cal data [ 51.267639] AP OBSS SYNC - BBP R4 to 20MHz.l [ 51.580043] mt7915_apply_dpd_flatness_data: DPD Pre-Cal finished, load DPD Pre-Cal data [ 51.597119] AP OBSS SYNC - BBP R4 to 20MHz.l [ 51.909917] Channel[Idx=0, Ch=1].bEffectedChannel=0x2! [ 51.915073] Channel[Idx=1, Ch=2].bEffectedChannel=0x0! [ 51.920262] Channel[Idx=2, Ch=3].bEffectedChannel=0x0! [ 51.925410] Channel[Idx=3, Ch=4].bEffectedChannel=0x2! [ 51.930591] needFallBack=TRUE due to OP/OT! [ 51.934786] Channel[Idx=4, Ch=5].bEffectedChannel=0x2! [ 51.939974] needFallBack=TRUE due to OP/OT! [ 51.944167] Channel[Idx=5, Ch=6].bEffectedChannel=0x2! [ 51.949302] needFallBack=TRUE due to OP/OT! [ 51.953521] Channel[Idx=6, Ch=7].bEffectedChannel=0x0! [ 51.958668] Channel[Idx=7, Ch=8].bEffectedChannel=0x0! [ 51.964091] mt7915_apply_dpd_flatness_data: DPD Pre-Cal finished, load DPD Pre-Cal data [ 51.981528] ap_link_up(caller:APStartUpForMbss+0x448/0x6a4), wdev(0) [ 51.987917] wifi_sys_linkup, wdev idx = 0 [ 51.992500] wtc_acquire_groupkey_wcid: Found a non-occupied wtbl_idx:287 for WDEV_TYPE:1 [ 51.992500] LinkToOmacIdx = 0, LinkToWdevType = 1 [ 52.005644] TRTableInsertMcastEntry:band0 group_idx[0]=0 [ 52.011120] wifi_sys_linkup:wdev(type=0,func_idx=1,wdev_idx=0),BssIndex(0) [ 52.018330] hw_ctrl_flow_v2_link_up: wdev_idx=0 [ 52.022977] (bssUpdateChannel), ucPrimCh=1, ucCentChSeg0=3, ucCentChSeg1=0, BW=1, ucHetbRU26Disable=0, ucHetbAllDisable=1 [ 52.034054] bssUpdateBmcMngRate (BSS_INFO_BROADCAST_INFO), CmdBssInfoBmcRate.u2BcTransmit= 8320, CmdBssInfoBmcRate.u2McTransmit = 8320 [ 52.050717] UpdateBeaconHandler, BCN_UPDATE_INIT, OmacIdx = 0 (ra0) [ 52.057038] bcn_buf_init():BcnPkt is allocated!, bcn offload=1 [ 52.063569] MtCmdTxPowerSKUCtrl: tx_pwr_sku_en: 1, BandIdx: 0 [ 52.069673] MtCmdTxBfBackoffCtrl: fgTxBFBackoffEn: 1, BandIdx: 0 [ 52.076028] MtCmdTxPowerPercentCtrl: fgTxPowerPercentEn: 0, BandIdx: 0 [ 52.082969] TxCCKStreamCtrl: set wrong parameters [ 52.095301] set muru_update_he_cfg()!!!! [ 52.099258] PrintSrCmd: [ 52.099258] u1CmdSubId = 1, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0 [ 52.099258] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0 [ 52.113630] PrintSrCmd: [ 52.113630] u1CmdSubId = 5, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0 [ 52.113630] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0 [ 52.127872] PrintSrCmd: [ 52.127872] u1CmdSubId = 3, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0 [ 52.127872] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0 [ 52.142034] PrintSrCmd: [ 52.142034] u1CmdSubId = 23, u1ArgNum = 0, u1DbdcIdx = 0, u1Status = 0 [ 52.142034] u1DropTaIdx = 0, u1StaIdx = 0, u4Value = 0 [ 52.156499] apidx 0 for WscUUIDInit [ 52.160095] Generate UUID for apidx(0) [ 52.164094] WDS_Init():wds_num[0]=0, count=0, MAX_WDS_ENTRY=16, if_idx=0, flg_wds_init=0 [ 52.172295] Total allocated 0 WDS(es) for band0! [ 52.177565] extif_set_dev(ra0) [ 52.213427] device ra0 entered promiscuous mode [ 52.218500] br-lan: port 2(ra0) entered listening state [ 52.224065] br-lan: port 2(ra0) entered listening state UP: ap2g [ 52.668922] no net device found for eth0 or [ 52.999043] Mac: 5e:07:7d:7c:c5:14 was aleady existed. [ 53.004542] Mac: 54:07:7d:7c:c5:14 was aleady existed. [ 53.010096] Mac: 52:07:7d:7c:c5:14 was aleady existed. [ 54.219970] br-lan: port 2(ra0) entered learning state [ 55.238445] Enable GAS service for MBSSID[0] [ 55.286590] Enable GAS service for MBSSID[2] [ 55.292246] Set_HotSpot_OnOff ==> wdev[0] is already in [OFF] STATE , skip. [ 55.299355] Set_HotSpot_OnOff ==> wdev[2] is already in [OFF] STATE , skip. [ 55.324437] Set_Fh_Bss_Proc ra0 wdev->MAPCfg.DevOwnRole 0x0 [ 55.348424] Set_Fh_Bss_Proc ra0 wdev->MAPCfg.DevOwnRole 0x20 [ 55.559263] Set_HotSpot_OnOff ==> wdev[0] is already in [OFF] STATE , skip. [ 55.566466] Set_HotSpot_OnOff ==> wdev[2] is already in [OFF] STATE , skip. [ 56.219895] br-lan: topology change detected, propagating [ 56.225325] br-lan: port 2(ra0) entered forwarding state [ 57.403633] Del::OID_AP_VENDOR_IE_DEL [ 57.408630] Set::OID_AP_VENDOR_IE_SET [ 57.412522] interface is down, return!!! [ 57.417799] interface is down, return!!! [ 57.905163] Set MaxProbeReqCnt = 11 [ 57.908847] Set MaxProbeReqCnt = 11 [ 57.923564] SetThermalProtectEnable(): band_idx: 0, protection_type: 1, trigger_type: 1 [ 57.931749] SetThermalProtectEnable(): trigger_temp: 118, restore_temp: 112, recheck_time: 5 [ 57.940393] MtCmdThermalProtectEnable: band_idx: 0, protect_type: 1 [ 57.946746] MtCmdThermalProtectEnable: trigger_type: 1, trigger_temp: 118 [ 57.953664] MtCmdThermalProtectEnable: restore_temp: 112, recheck_time: 5 [ 57.961157] SetThermalProtectDutyCfg(): band_idx: 0, level_idx: 1, duty: 80 [ 57.968142] MtCmdThermalProtectDutyCfg: band_idx: 0, level_idx: 1 [ 57.974355] MtCmdThermalProtectDutyCfg: duty: 80 [ 57.979495] SetThermalProtectDutyCfg(): band_idx: 0, level_idx: 0, duty: 100 [ 57.986661] MtCmdThermalProtectDutyCfg: band_idx: 0, level_idx: 0 [ 57.992802] MtCmdThermalProtectDutyCfg: duty: 100 [ 57.997987] SetThermalProtectDutyCfg(): band_idx: 0, level_idx: 3, duty: 50 [ 58.005191] MtCmdThermalProtectDutyCfg: band_idx: 0, level_idx: 3 [ 58.011341] MtCmdThermalProtectDutyCfg: duty: 50 [ 58.017004] SetThermalProtectDutyCfg(): band_idx: 0, level_idx: 2, duty: 60 [ 58.024126] MtCmdThermalProtectDutyCfg: band_idx: 0, level_idx: 2 [ 58.030402] MtCmdThermalProtectDutyCfg: duty: 60 [ 60.527029] module exit [ 62.101382] Set_MapR2_Proc MAP R2 is already disabled [ 62.111621] Set_MapTS_Proc MAP TS is already disabled [ 62.155936] Set_MapR2_Proc MAP R2 is already disabled [ 62.165347] Set_MapTS_Proc MAP TS is already disabled [ 62.212735] Set_Map_Proc current MAP MODE is 0 [ 62.262167] Set_Map_Proc current MAP MODE is 0 [ 65.411357] Enable GAS service for MBSSID[0] [ 65.419105] Enable GAS service for MBSSID[2] [ 65.425482] Set_HotSpot_OnOff ==> wdev[0] is already in [OFF] STATE , skip. [ 65.432759] Set_HotSpot_OnOff ==> wdev[2] is already in [OFF] STATE , skip. [ 65.457038] Set_Fh_Bss_Proc ra0 wdev->MAPCfg.DevOwnRole 0x0 [ 65.479429] Set_Fh_Bss_Proc ra0 wdev->MAPCfg.DevOwnRole 0x20 [ 66.554319] SetThermalProtectDutyCfg(): band_idx: 0, level_idx: 0, duty: 100 [ 66.561474] MtCmdThermalProtectDutyCfg: band_idx: 0, level_idx: 0 [ 66.567563] MtCmdThermalProtectDutyCfg: duty: 100 [ 66.589695] SetThermalProtectDutyCfg(): band_idx: 0, level_idx: 1, duty: 80 [ 66.596925] MtCmdThermalProtectDutyCfg: band_idx: 0, level_idx: 1 [ 66.603120] MtCmdThermalProtectDutyCfg: duty: 80 [ 66.625155] SetThermalProtectDutyCfg(): band_idx: 0, level_idx: 2, duty: 60 [ 66.632166] MtCmdThermalProtectDutyCfg: band_idx: 0, level_idx: 2 [ 66.638255] MtCmdThermalProtectDutyCfg: duty: 60 [ 66.659669] SetThermalProtectDutyCfg(): band_idx: 0, level_idx: 3, duty: 50 [ 66.666696] MtCmdThermalProtectDutyCfg: band_idx: 0, level_idx: 3 [ 66.672828] MtCmdThermalProtectDutyCfg: duty: 50 [ 66.694119] SetThermalProtectEnable(): band_idx: 0, protection_type: 1, trigger_type: 1 [ 66.702226] SetThermalProtectEnable(): trigger_temp: 118, restore_temp: 112, recheck_time: 5 [ 66.710724] MtCmdThermalProtectEnable: band_idx: 0, protect_type: 1 [ 66.717003] MtCmdThermalProtectEnable: trigger_type: 1, trigger_temp: 118 [ 66.723851] MtCmdThermalProtectEnable: restore_temp: 112, recheck_time: 5 [ 66.746918] Set MaxProbeReqCnt = 11 Login timed out EAX15v2 login:

U-Boot SPL 2018.09-20210825 (Aug 25 2021 - 16:51:25 +0800) Trying to boot from NAND U-Boot 2018.09-20210825 (Aug 25 2021 - 16:51:25 +0800) CPU: MediaTek MT7621AT ver 1, eco 3 Clocks: CPU: 880MHz, DDR: 1200MHz, Bus: 220MHz, XTAL: 40MHz Model: MediaTek MT7621 reference board (NAND) DRAM: 256 MiB NAND: 128 MiB Loading Environment from NAND... OK In: uartlite0@1e000c00 Out: uartlite0@1e000c00 Err: uartlite0@1e000c00 Net: eth0: eth@1e100000 nmrp activated nmrp listen timeout. nmrp Nmrp_cleanup. Hit any key to stop autoboot: 0 [?25l[2J[1;1H[1;1H[2K[2;1H *** U-Boot Boot Menu ***[0K[3;1H[2K[11;1H[2K[12;1H Press UP/DOWN to move, ENTER to select[0K[13;1H[2K[4;1H [7m1. Startup system (Default)[0m[5;1H 2. Upgrade firmware[6;1H 3. Upgrade bootloader[7;1H 4. Upgrade bootloader (advanced mode)[8;1H 5. Load image[9;1H 0. U-Boot console[11;1H Hit any key to stop autoboot: 1 0 [11;1H[2K[?25h[2J[1;1H Starting dual image checking ... Verifying main image at 0x180000 ... ## Checking hash(es) for FIT Image at 80020000 ... Hash(es) for Image 0 (kernel-1): crc32+ sha1+ Hash(es) for Image 1 (fdt-1): crc32+ sha1+ Verifying backup image at 0x3980000 ... ## Checking hash(es) for FIT Image at 80360000 ... Hash(es) for Image 0 (kernel@1): crc32+ sha1+ Hash(es) for Image 1 (fdt@1): crc32+ sha1+ Verifying rootfs ... Passed Loading from nand0, offset 0x180000 Fit image detected... FIT description: MIPS OpenWrt FIT (Flattened Image Tree) Image 0 (kernel-1) Description: MIPS OpenWrt Linux-6.6.119 Type: Kernel Image Compression: lzma compressed Data Start: 0x800100e4 Data Size: 3180901 Bytes = 3 MiB Architecture: MIPS OS: Linux Load Address: 0x82000000 Entry Point: 0x82000000 Hash algo: crc32 Hash value: cdd08692 Hash algo: sha1 Hash value: a3b7de6c9b7a9aaf2f4f4345dbccb356bad37124 Image 1 (fdt-1) Description: MIPS OpenWrt netgear_eax12 device tree blob Type: Flat Device Tree Compression: uncompressed Data Start: 0x80318b88 Data Size: 12851 Bytes = 12.5 KiB Architecture: MIPS Hash algo: crc32 Hash value: d9b6413e Hash algo: sha1 Hash value: 6326a1c01c036bf77f8f9bf1aa97ab69634035ba Default Configuration: 'config-1' Configuration 0 (config-1) Description: OpenWrt netgear_eax12 Kernel: kernel-1 FDT: fdt-1 Automatic boot of image at addr 0x80010000 ... ## Loading kernel from FIT Image at 80010000 ... Using 'config-1' configuration Trying 'kernel-1' kernel subimage Description: MIPS OpenWrt Linux-6.6.119 Type: Kernel Image Compression: lzma compressed Data Start: 0x800100e4 Data Size: 3180901 Bytes = 3 MiB Architecture: MIPS OS: Linux Load Address: 0x82000000 Entry Point: 0x82000000 Hash algo: crc32 Hash value: cdd08692 Hash algo: sha1 Hash value: a3b7de6c9b7a9aaf2f4f4345dbccb356bad37124 Verifying Hash Integrity ... crc32+ sha1+ OK ## Loading fdt from FIT Image at 80010000 ... Using 'config-1' configuration Trying 'fdt-1' fdt subimage Description: MIPS OpenWrt netgear_eax12 device tree blob Type: Flat Device Tree Compression: uncompressed Data Start: 0x80318b88 Data Size: 12851 Bytes = 12.5 KiB Architecture: MIPS Hash algo: crc32 Hash value: d9b6413e Hash algo: sha1 Hash value: 6326a1c01c036bf77f8f9bf1aa97ab69634035ba Verifying Hash Integrity ... crc32+ sha1+ OK Booting using the fdt blob at 0x80318b88 Uncompressing Kernel Image ... OK Loading Device Tree to 8fe76000, end 8fe7c232 ... OK [ 0.000000] Linux version 6.6.119 (builder@buildhost) (mipsel-openwrt-linux-musl-gcc (OpenWrt GCC 13.3.0 r29087-d9c5716d1d) 13.3.0, GNU ld (GNU Binutils) 2.42) #0 SMP Wed Dec 17 21:08:22 2025 [ 0.000000] SoC Type: MediaTek MT7621 ver:1 eco:3 [ 0.000000] printk: bootconsole [early0] enabled [ 0.000000] CPU0 revision is: 0001992f (MIPS 1004Kc) [ 0.000000] MIPS: machine is Netgear EAX12 [ 0.000000] Initrd not found or empty - disabling initrd [ 0.000000] VPE topology {2,2} total 4 [ 0.000000] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes. [ 0.000000] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes [ 0.000000] MIPS secondary cache 256kB, 8-way, linesize 32 bytes. [ 0.000000] Zone ranges: [ 0.000000] Normal [mem 0x0000000000000000-0x000000000fffffff] [ 0.000000] Movable zone start for each node [ 0.000000] Early memory node ranges [ 0.000000] node 0: [mem 0x0000000000000000-0x000000000fffffff] [ 0.000000] Initmem setup node 0 [mem 0x0000000000000000-0x000000000fffffff] [ 0.000000] percpu: Embedded 12 pages/cpu s19040 r8192 d21920 u49152 [ 0.000000] pcpu-alloc: s19040 r8192 d21920 u49152 alloc=12*4096 [ 0.000000] pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3 [ 0.000000] Kernel command line: console=ttyS0,115200 slub_debug=- loglevel=8 mtdoops.mtddev=LOG mtdoops.record_size=16384 uboot=1 rootfstype=squashfs,jffs2 [ 0.000000] Unknown kernel command line parameters "slub_debug=- uboot=1", will be passed to user space. [ 0.000000] Dentry cache hash table entries: 32768 (order: 5, 131072 bytes, linear) [ 0.000000] Inode-cache hash table entries: 16384 (order: 4, 65536 bytes, linear) [ 0.000000] Writing ErrCtl register=00046030 [ 0.000000] Readback ErrCtl register=00046030 [ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 64960 [ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off [ 0.000000] Memory: 247796K/262144K available (8390K kernel code, 654K rwdata, 1020K rodata, 1252K init, 229K bss, 14348K reserved, 0K cma-reserved) [ 0.000000] SLUB: HWalign=32, Order=0-3, MinObjects=0, CPUs=4, Nodes=1 [ 0.000000] rcu: Hierarchical RCU implementation. [ 0.000000] Tracing variant of Tasks RCU enabled. [ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jiffies. [ 0.000000] NR_IRQS: 256 [ 0.000000] rcu: srcu_init: Setting srcu_struct sizes based on contention. [ 0.000000] clocksource: GIC: mask: 0xffffffffffffffff max_cycles: 0xcaf478abb4, max_idle_ns: 440795247997 ns [ 0.000004] sched_clock: 64 bits at 880MHz, resolution 1ns, wraps every 4398046511103ns [ 0.008085] Calibrating delay loop... 586.13 BogoMIPS (lpj=2930688) [ 0.066221] pid_max: default: 32768 minimum: 301 [ 0.079565] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes, linear) [ 0.086816] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes, linear) [ 0.103430] RCU Tasks Trace: Setting shift to 2 and lim to 1 rcu_task_cb_adjust=1 rcu_task_cpu_ids=4. [ 0.113292] rcu: Hierarchical SRCU implementation. [ 0.118002] rcu: Max phase no-delay instances is 1000. [ 0.124111] smp: Bringing up secondary CPUs ... [ 0.129508] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes. [ 0.129537] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes [ 0.129551] MIPS secondary cache 256kB, 8-way, linesize 32 bytes. [ 0.129601] CPU1 revision is: 0001992f (MIPS 1004Kc) [ 0.183494] Synchronize counters for CPU 1: done. [ 0.215702] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes. [ 0.215729] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes [ 0.215742] MIPS secondary cache 256kB, 8-way, linesize 32 bytes. [ 0.215778] CPU2 revision is: 0001992f (MIPS 1004Kc) [ 0.274900] Synchronize counters for CPU 2: done. [ 0.305695] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes. [ 0.305723] Primary data cache 32kB, 4-way, PIPT, no aliases, linesize 32 bytes [ 0.305735] MIPS secondary cache 256kB, 8-way, linesize 32 bytes. [ 0.305775] CPU3 revision is: 0001992f (MIPS 1004Kc) [ 0.360124] Synchronize counters for CPU 3: done. [ 0.390009] smp: Brought up 1 node, 4 CPUs [ 0.401596] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns [ 0.411415] futex hash table entries: 1024 (order: 3, 32768 bytes, linear) [ 0.422281] pinctrl core: initialized pinctrl subsystem [ 0.430461] NET: Registered PF_NETLINK/PF_ROUTE protocol family [ 0.437282] thermal_sys: Registered thermal governor 'step_wise' [ 0.439071] /pinctrl: Fixed dependency cycle(s) with /pinctrl/pinctrl0 [ 0.451988] mt7621-pinctrl pinctrl: there is not valid maps for state default [ 0.462544] FPU Affinity set after 11720 emulations [ 0.479821] clocksource: Switched to clocksource GIC [ 0.495012] NET: Registered PF_INET protocol family [ 0.500185] IP idents hash table entries: 4096 (order: 3, 32768 bytes, linear) [ 0.509216] tcp_listen_portaddr_hash hash table entries: 512 (order: 0, 4096 bytes, linear) [ 0.517542] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear) [ 0.525275] TCP established hash table entries: 2048 (order: 1, 8192 bytes, linear) [ 0.532896] TCP bind hash table entries: 2048 (order: 3, 32768 bytes, linear) [ 0.540107] TCP: Hash tables configured (established 2048 bind 2048) [ 0.547392] MPTCP token hash table entries: 256 (order: 0, 4096 bytes, linear) [ 0.554929] UDP hash table entries: 256 (order: 1, 8192 bytes, linear) [ 0.561425] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes, linear) [ 0.569295] NET: Registered PF_UNIX/PF_LOCAL protocol family [ 0.574982] PCI: CLS 0 bytes, default 32 [ 0.583157] workingset: timestamp_bits=14 max_order=16 bucket_order=2 [ 0.590977] squashfs: version 4.0 (2009/01/31) Phillip Lougher [ 0.596740] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc. [ 0.612447] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 251) [ 0.623964] mt7621_gpio 1e000600.gpio: registering 32 gpios [ 0.630101] mt7621_gpio 1e000600.gpio: registering 32 gpios [ 0.636030] mt7621_gpio 1e000600.gpio: registering 32 gpios [ 0.642425] mt7621-pci 1e140000.pcie: host bridge /pcie@1e140000 ranges: [ 0.649077] mt7621-pci 1e140000.pcie: No bus range found for /pcie@1e140000, using [bus 00-ff] [ 0.657860] mt7621-pci 1e140000.pcie: MEM 0x0060000000..0x006fffffff -> 0x0060000000 [ 0.665971] mt7621-pci 1e140000.pcie: IO 0x001e160000..0x001e16ffff -> 0x0000000000 [ 1.029819] mt7621-pci 1e140000.pcie: pcie2 no card, disable it (RST & CLK) [ 1.036724] mt7621-pci 1e140000.pcie: PCIE0 enabled [ 1.041609] mt7621-pci 1e140000.pcie: PCIE1 enabled [ 1.046586] PCI coherence region base: 0x60000000, mask/settings: 0xf0000002 [ 1.053828] mt7621-pci 1e140000.pcie: PCI host bridge to bus 0000:00 [ 1.060175] pci_bus 0000:00: root bus resource [bus 00-ff] [ 1.065587] pci_bus 0000:00: root bus resource [mem 0x60000000-0x6fffffff] [ 1.072444] pci_bus 0000:00: root bus resource [io 0x0000-0xffff] [ 1.078601] pci 0000:00:00.0: [0e8d:0801] type 01 class 0x060400 [ 1.084552] pci 0000:00:00.0: reg 0x10: [mem 0x00000000-0x7fffffff] [ 1.090794] pci 0000:00:00.0: reg 0x14: [mem 0x00000000-0x0000ffff] [ 1.097035] pci 0000:00:00.0: supports D1 [ 1.100981] pci 0000:00:00.0: PME# supported from D0 D1 D3hot [ 1.107497] pci 0000:00:01.0: [0e8d:0801] type 01 class 0x060400 [ 1.113554] pci 0000:00:01.0: reg 0x10: [mem 0x00000000-0x7fffffff] [ 1.119752] pci 0000:00:01.0: reg 0x14: [mem 0x00000000-0x0000ffff] [ 1.126049] pci 0000:00:01.0: supports D1 [ 1.129996] pci 0000:00:01.0: PME# supported from D0 D1 D3hot [ 1.137892] pci 0000:00:00.0: bridge configuration invalid ([bus 00-00]), reconfiguring [ 1.145898] pci 0000:00:01.0: bridge configuration invalid ([bus 00-00]), reconfiguring [ 1.154201] pci 0000:01:00.0: [14c3:7916] type 00 class 0x000280 [ 1.160232] pci 0000:01:00.0: reg 0x10: [mem 0x00000000-0x000fffff 64bit pref] [ 1.167387] pci 0000:01:00.0: reg 0x18: [mem 0x00000000-0x00003fff 64bit pref] [ 1.174612] pci 0000:01:00.0: reg 0x20: [mem 0x00000000-0x00000fff 64bit pref] [ 1.181896] pci 0000:01:00.0: supports D1 D2 [ 1.186074] pci 0000:01:00.0: PME# supported from D0 D1 D2 D3hot D3cold [ 1.192711] pci 0000:01:00.0: 2.000 Gb/s available PCIe bandwidth, limited by 2.5 GT/s PCIe x1 link at 0000:00:00.0 (capable of 4.000 Gb/s with 5.0 GT/s PCIe x1 link) [ 1.207752] pci 0000:00:00.0: PCI bridge to [bus 01-ff] [ 1.212981] pci 0000:00:00.0: bridge window [io 0x0000-0x0fff] [ 1.218995] pci 0000:00:00.0: bridge window [mem 0x00000000-0x000fffff] [ 1.225765] pci 0000:00:00.0: bridge window [mem 0x00000000-0x000fffff pref] [ 1.232939] pci_bus 0000:01: busn_res: [bus 01-ff] end is updated to 01 [ 1.239878] pci 0000:02:00.0: [14c3:7915] type 00 class 0x000280 [ 1.245853] pci 0000:02:00.0: reg 0x10: [mem 0x00000000-0x000fffff 64bit pref] [ 1.253059] pci 0000:02:00.0: reg 0x18: [mem 0x00000000-0x00003fff 64bit pref] [ 1.260225] pci 0000:02:00.0: reg 0x20: [mem 0x00000000-0x00000fff 64bit pref] [ 1.267480] pci 0000:02:00.0: supports D1 D2 [ 1.271699] pci 0000:02:00.0: PME# supported from D0 D1 D2 D3hot D3cold [ 1.278260] pci 0000:02:00.0: 2.000 Gb/s available PCIe bandwidth, limited by 2.5 GT/s PCIe x1 link at 0000:00:01.0 (capable of 4.000 Gb/s with 5.0 GT/s PCIe x1 link) [ 1.293357] pci 0000:00:01.0: PCI bridge to [bus 02-ff] [ 1.298523] pci 0000:00:01.0: bridge window [io 0x0000-0x0fff] [ 1.304609] pci 0000:00:01.0: bridge window [mem 0x00000000-0x000fffff] [ 1.311329] pci 0000:00:01.0: bridge window [mem 0x00000000-0x000fffff pref] [ 1.318474] pci_bus 0000:02: busn_res: [bus 02-ff] end is updated to 02 [ 1.325174] pci 0000:00:00.0: BAR 0: no space for [mem size 0x80000000] [ 1.331734] pci 0000:00:00.0: BAR 0: failed to assign [mem size 0x80000000] [ 1.338605] pci 0000:00:01.0: BAR 0: no space for [mem size 0x80000000] [ 1.345199] pci 0000:00:01.0: BAR 0: failed to assign [mem size 0x80000000] [ 1.352118] pci 0000:00:00.0: BAR 8: assigned [mem 0x60000000-0x600fffff] [ 1.358822] pci 0000:00:00.0: BAR 9: assigned [mem 0x60100000-0x602fffff pref] [ 1.366024] pci 0000:00:01.0: BAR 8: assigned [mem 0x60300000-0x603fffff] [ 1.372763] pci 0000:00:01.0: BAR 9: assigned [mem 0x60400000-0x605fffff pref] [ 1.379939] pci 0000:00:00.0: BAR 1: assigned [mem 0x60600000-0x6060ffff] [ 1.386648] pci 0000:00:01.0: BAR 1: assigned [mem 0x60610000-0x6061ffff] [ 1.393423] pci 0000:00:00.0: BAR 7: assigned [io 0x0000-0x0fff] [ 1.399430] pci 0000:00:01.0: BAR 7: assigned [io 0x1000-0x1fff] [ 1.405524] pci 0000:01:00.0: BAR 0: assigned [mem 0x60100000-0x601fffff 64bit pref] [ 1.413210] pci 0000:01:00.0: BAR 2: assigned [mem 0x60200000-0x60203fff 64bit pref] [ 1.420900] pci 0000:01:00.0: BAR 4: assigned [mem 0x60204000-0x60204fff 64bit pref] [ 1.428558] pci 0000:00:00.0: PCI bridge to [bus 01] [ 1.433502] pci 0000:00:00.0: bridge window [io 0x0000-0x0fff] [ 1.439520] pci 0000:00:00.0: bridge window [mem 0x60000000-0x600fffff] [ 1.446288] pci 0000:00:00.0: bridge window [mem 0x60100000-0x602fffff pref] [ 1.453476] pci 0000:02:00.0: BAR 0: assigned [mem 0x60400000-0x604fffff 64bit pref] [ 1.461162] pci 0000:02:00.0: BAR 2: assigned [mem 0x60500000-0x60503fff 64bit pref] [ 1.468820] pci 0000:02:00.0: BAR 4: assigned [mem 0x60504000-0x60504fff 64bit pref] [ 1.476540] pci 0000:00:01.0: PCI bridge to [bus 02] [ 1.481452] pci 0000:00:01.0: bridge window [io 0x1000-0x1fff] [ 1.487472] pci 0000:00:01.0: bridge window [mem 0x60300000-0x603fffff] [ 1.494240] pci 0000:00:01.0: bridge window [mem 0x60400000-0x605fffff pref] [ 1.503117] Serial: 8250/16550 driver, 16 ports, IRQ sharing enabled [ 1.520047] printk: console [ttyS0] disabled [ 1.525150] 1e000c00.uartlite: ttyS0 at MMIO 0x1e000c00 (irq = 18, base_baud = 3125000) is a 16550A [ 1.534307] printk: console [ttyS0] enabled [ 1.534307] printk: console [ttyS0] enabled [ 1.542683] printk: bootconsole [early0] disabled [ 1.542683] printk: bootconsole [early0] disabled [ 1.557037] nand: device found, Manufacturer ID: 0xc8, Chip ID: 0xd1 [ 1.563445] nand: ESMT PSU1GA30DT [ 1.566751] nand: 128 MiB, SLC, erase size: 128 KiB, page size: 2048, OOB size: 64 [ 1.574320] mt7621-nand 1e003000.nand: ECC strength adjusted to 4 bits [ 1.580957] 9 fixed-partitions partitions found on MTD device mt7621-nand [ 1.588073] Creating 9 MTD partitions on "mt7621-nand": [ 1.593338] 0x000000000000-0x000000080000 : "Bootloader" [ 1.606030] 0x000000080000-0x000000100000 : "Config" [ 1.617796] 0x000000100000-0x000000180000 : "Factory" [ 1.630218] 0x000000180000-0x000003980000 : "firmware" [ 2.240771] 2 fixed-partitions partitions found on MTD device firmware [ 2.247315] Creating 2 MTD partitions on "firmware": [ 2.252316] 0x000000000000-0x000000400000 : "kernel" [ 2.302337] 0x000000400000-0x000003800000 : "ubi" [ 2.869536] 0x000003980000-0x000007180000 : "firmware_backup" [ 3.480967] 0x000007180000-0x000007380000 : "CFG" [ 3.508757] 0x000007380000-0x000007980000 : "RAE" [ 3.579736] 0x000007980000-0x0000079a0000 : "POT" [ 3.587277] 0x0000079a0000-0x0000079e0000 : "LOG" [ 3.751308] mtk_soc_eth 1e100000.ethernet: generated random MAC address 65:74:68:AA:BB:CC [ 3.761454] mt7530-mdio mdio-bus:1f: MT7530 adapts as multi-chip module [ 3.778692] mtk_soc_eth 1e100000.ethernet eth0: mediatek frame engine at 0xbe100000, irq 19 [ 3.788827] i2c_dev: i2c /dev entries driver [ 3.797582] NET: Registered PF_INET6 protocol family [ 3.805820] Segment Routing with IPv6 [ 3.809608] In-situ OAM (IOAM) with IPv6 [ 3.813727] NET: Registered PF_PACKET protocol family [ 3.818855] bridge: filtering via arp/ip/ip6tables is no longer available by default. Update your scripts to load br_netfilter if you need this. [ 3.832354] 8021q: 802.1Q VLAN Support v1.8 [ 3.870047] mt7530-mdio mdio-bus:1f: MT7530 adapts as multi-chip module [ 3.905033] mt7530-mdio mdio-bus:1f: configuring for fixed/rgmii link mode [ 3.913915] mt7530-mdio mdio-bus:1f lan (uninitialized): PHY [mt7530-0:00] driver [MediaTek MT7530 PHY] (irq=21) [ 3.925944] mt7530-mdio mdio-bus:1f: Link is Up - 1Gbps/Full - flow control rx/tx [ 3.928168] mtk_soc_eth 1e100000.ethernet eth0: entered promiscuous mode [ 3.940427] DSA: tree 0 setup [ 3.946026] UBI: auto-attach mtd5 [ 3.949382] ubi0: attaching mtd5 [ 4.890910] ubi0: scanning is finished [ 4.907695] ubi0: attached mtd5 (name "ubi", size 52 MiB) [ 4.913199] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes [ 4.920082] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048 [ 4.926845] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096 [ 4.933807] ubi0: good PEBs: 416, bad PEBs: 0, corrupted PEBs: 0 [ 4.939817] ubi0: user volume: 2, internal volumes: 1, max. volumes count: 128 [ 4.947012] ubi0: max/mean erase counter: 2/0, WL threshold: 4096, image sequence number: 1766005702 [ 4.956130] ubi0: available PEBs: 0, total reserved PEBs: 416, PEBs reserved for bad PEB handling: 20 [ 4.965395] ubi0: background thread "ubi_bgt0d" started, PID 450 [ 4.967781] block ubiblock0_0: created from ubi0:0(rootfs) [ 4.976992] ubiblock: device ubiblock0_0 (rootfs) set to be root filesystem [ 4.984279] clk: Disabling unused clocks [ 4.995604] VFS: Mounted root (squashfs filesystem) readonly on device 254:0. [ 5.007262] Freeing unused kernel image (initmem) memory: 1252K [ 5.013289] This architecture does not have kernel memory protection. [ 5.019728] Run /sbin/init as init process [ 5.023834] with arguments: [ 5.026790] /sbin/init [ 5.029481] with environment: [ 5.032631] HOME=/ [ 5.034981] TERM=linux [ 5.037670] slub_debug=- [ 5.040559] uboot=1 [ 5.489846] init: Console is alive [ 5.493651] init: - watchdog - [ 6.213994] kmodloader: loading kernel modules from /etc/modules-boot.d/* [ 6.263721] gpio_button_hotplug: loading out-of-tree module taints kernel. [ 6.280253] kmodloader: done loading kernel modules from /etc/modules-boot.d/* [ 6.298236] init: - preinit - [ 10.889819] random: crng init done [ 11.063737] mtdblock: MTD device 'Config' is NAND, please consider using UBI block devices instead. [ 11.590433] mtk_soc_eth 1e100000.ethernet eth0: configuring for fixed/rgmii link mode [ 11.603213] mt7530-mdio mdio-bus:1f lan: configuring for phy/gmii link mode [ 11.610345] mtk_soc_eth 1e100000.ethernet eth0: Link is Up - 1Gbps/Full - flow control rx/tx Press the [f] key and hit [enter] to enter failsafe mode Press the [1], [2], [3] or [4] key and hit [enter] to select the debug level [ 14.942799] mt7530-mdio mdio-bus:1f lan: Link is Up - 1Gbps/Full - flow control off [ 15.991570] UBIFS (ubi0:1): Mounting in unauthenticated mode [ 15.997607] UBIFS (ubi0:1): background thread "ubifs_bgt0_1" started, PID 612 [ 16.057225] UBIFS (ubi0:1): recovery needed [ 16.221074] UBIFS (ubi0:1): recovery completed [ 16.225682] UBIFS (ubi0:1): UBIFS: mounted UBI device 0, volume 1, name "rootfs_data" [ 16.233528] UBIFS (ubi0:1): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes [ 16.243435] UBIFS (ubi0:1): FS size: 44060672 bytes (42 MiB, 347 LEBs), max 357 LEBs, journal size 2158592 bytes (2 MiB, 17 LEBs) [ 16.255087] UBIFS (ubi0:1): reserved for root: 2081093 bytes (2032 KiB) [ 16.261703] UBIFS (ubi0:1): media format: w5/r0 (latest is w5/r0), UUID 05FF3F04-DC38-459A-B27B-2FC5B77B9AA2, small LPT model [ 16.276825] mount_root: switching to ubifs overlay [ 16.297369] urandom-seed: Seeding with /etc/urandom.seed [ 16.398311] mt7530-mdio mdio-bus:1f lan: Link is Down [ 16.414974] procd: - early - [ 16.418119] procd: - watchdog - [ 17.038488] procd: - watchdog - [ 17.042933] procd: - ubus - [ 17.145156] procd: - init - Please press Enter to activate this console. [ 17.854599] kmodloader: loading kernel modules from /etc/modules.d/* [ 17.920340] mtk-eip93 1e004000.crypto: EIP93 Crypto Engine Initialized. [ 18.516718] Loading modules backported from Linux version v6.12.61-0-gdcbeffaf66d0 [ 18.524344] Backport generated by backports.git v6.1.110-1-35-g410656ef [ 18.708445] pci 0000:00:00.0: enabling device (0000 -> 0003) [ 18.714216] mt7915e_hif 0000:01:00.0: enabling device (0000 -> 0002) [ 18.721163] pci 0000:00:01.0: enabling device (0000 -> 0003) [ 18.726869] mt7915e 0000:02:00.0: enabling device (0000 -> 0002) [ 18.985636] mt7915e 0000:02:00.0: HW/SW Version: 0x8a108a10, Build Time: 20240429200716a [ 18.985636] [ 19.007366] urngd: v1.0.2 started. [ 19.292101] mt7915e 0000:02:00.0: WM Firmware Version: ____000000, Build Time: 20240429200752 [ 19.330877] mt7915e 0000:02:00.0: WA Firmware Version: DEV_000000, Build Time: 20240429200812 [ 19.477716] mt7915e 0000:02:00.0: registering led 'mt76-phy0' [ 19.564868] mt7915e 0000:02:00.0: registering led 'mt76-phy1' [ 19.736644] PPP generic driver version 2.4.2 [ 19.743238] NET: Registered PF_PPPOX protocol family [ 19.756623] kmodloader: done loading kernel modules from /etc/modules.d/* [ 20.500492] mtdblock: MTD device 'Config' is NAND, please consider using UBI block devices instead. [ 21.245688] mtdblock: MTD device 'Config' is NAND, please consider using UBI block devices instead. [ 28.733660] mtk_soc_eth 1e100000.ethernet eth0: Link is Down [ 28.759893] mtk_soc_eth 1e100000.ethernet eth0: configuring for fixed/rgmii link mode [ 28.768367] mtk_soc_eth 1e100000.ethernet eth0: Link is Up - 1Gbps/Full - flow control rx/tx [ 28.785843] mt7530-mdio mdio-bus:1f lan: configuring for phy/gmii link mode [ 28.796741] br-lan: port 1(lan) entered blocking state [ 28.802178] br-lan: port 1(lan) entered disabled state [ 28.807477] mt7530-mdio mdio-bus:1f lan: entered allmulticast mode [ 28.813891] mtk_soc_eth 1e100000.ethernet eth0: entered allmulticast mode [ 28.824040] mt7530-mdio mdio-bus:1f lan: entered promiscuous mode [ 33.354434] mt7530-mdio mdio-bus:1f lan: Link is Up - 1Gbps/Full - flow control off [ 33.362305] br-lan: port 1(lan) entered blocking state [ 33.367443] br-lan: port 1(lan) entered forwarding state BusyBox v1.36.1 (2025-12-17 21:08:22 UTC) built-in shell (ash) _______ ________ __ | |.-----.-----.-----.| | | |.----.| |_ | - || _ | -__| || | | || _|| _| |_______|| __|_____|__|__||________||__| |____| |__| W I R E L E S S F R E E D O M ----------------------------------------------------- OpenWrt 24.10.5, r29087-d9c5716d1d ----------------------------------------------------- root@OpenWrt:~#

None at this time.
