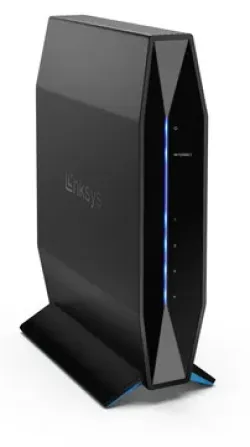

Linksys E7350 (aka. Belkin RT1800)
Linksys E7350 is a 2×2 802.11ax (Wi-Fi 6) router based on MediaTek MT7621A & MT7915D.
See Hardware Highlights for its hardware specification.
Supported Versions
Hardware Highlights
Installation
OEM easy installation
This device has 2 partitions for the firmware called firmware and alt_firmware. To successfully flash and boot the device, the device should have been running from alt_firmware partition. To get the device booted through alt_firmware partition, download the OEM firmware from Linksys website and upgrade the firmware from web GUI. Once this is done, flash the OpenWrt Factory firmware from web GUI.
OEM installation using the TFTP method
New Installations must be done over UART/TFTP procedure. Users already running OpenWrt 23.05.x can flash a sysupgrade image.
UART 115200 baud 8N1, 5 pin UART header on board pinout (viewed with ethernet ports facing you): GROUND-X-TXD-RXD-X (X=not used)
Choose UBoot option 6 and enter appropriate TFTP credentials pointing to OpenWRT Factory firmware image file .bin
Specific values needed for tftp
Enter values for “FILL-IN” below
| Bootloader tftp server IPv4 address | FILL-IN |
|---|---|
| Bootloader MAC address (special) | FILL-IN |
| Firmware tftp image | Latest OpenWrt release (NOTE: Name must contain “tftp”) |
| TFTP transfer window | FILL-IN seconds |
| TFTP window start | approximately FILL-IN seconds after power on |
| TFTP client required IP address | FILL-IN |
Upgrading OpenWrt
These are generic instructions. Update with your router's specifics.
LuCI Web Upgrade Process
- Browse to
http://192.168.1.1/cgi-bin/luci/mini/system/upgrade/LuCI Upgrade URL - Upload image file for sysupgrade to LuCI
- Wait for reboot
Terminal Upgrade Process
If you don't have a GUI (LuCI) available, you can alternatively upgrade via the command line. There are two command line methods for upgrading:
sysupgrademtd
Note: It is important that you put the firmware image into the ramdisk (/tmp) before you start flashing.
sysupgrade
- Login as root via SSH on 192.168.1.1, then enter the following commands:
cd /tmp wget http://downloads.openwrt.org/snapshots/trunk/XXX/xxx.abc sysupgrade /tmp/xxx.abc
mtd
If sysupgrade does not support this router, use mtd.
- Login as root via SSH on 192.168.1.1, then enter the following commands:
cd /tmp wget http://downloads.openwrt.org/snapshots/trunk/XXX/xxx.abc mtd write /tmp/xxx.abc linux && reboot
Reverting to factory firmware
- Boot to
alt_firmware(where stock firmware resides) by doing one of the following:- Press the “wps” button as soon as power LED turns on when booting.
- (OR) Hard-reset the router consecutively three times to force it to boot from
alt_firmware.
- To remove any traces of OpenWrt from your router simply flash the OEM image at this point.
Flash Layout
Find out flash layout, then add the flash layout table here (copy, paste, modify the example).
Please check out the article Flash layout. It contains examples and explanations that describe how to document the flash layout.
Debricking
Failsafe mode
Basic configuration
→ Basic configuration After flashing, proceed with this.
Set up your Internet connection, configure wireless, configure USB port, etc.
Specific Configuration
Please fill in real values for this device, then remove the EXAMPLEs
Network interfaces
The default network configuration is:
| Interface Name | Description | Default configuration |
|---|---|---|
| br-lan | EXAMPLE LAN & WiFi | EXAMPLE 192.168.1.1/24 |
| vlan0 (eth0.0) | EXAMPLE LAN ports (1 to 4) | EXAMPLE None |
| vlan1 (eth0.1) | EXAMPLE WAN port | EXAMPLE DHCP |
| wl0 | EXAMPLE WiFi | EXAMPLE Disabled |
Switch Ports (for VLANs)
Please fill in real values for this device, then remove the EXAMPLEs
Numbers 0-3 are Ports 1-4 as labeled on the unit, number 4 is the Internet (WAN) on the unit, 5 is the internal connection to the router itself. Don't be fooled: Port 1 on the unit is number 3 when configuring VLANs. vlan0 = eth0.0, vlan1 = eth0.1 and so on.
| Port | Switch port |
|---|---|
| Internet (WAN) | EXAMPLE 4 |
| LAN 1 | EXAMPLE 3 |
| LAN 2 | EXAMPLE 2 |
| LAN 3 | EXAMPLE 1 |
| LAN 4 | EXAMPLE 0 |
Buttons
→ hardware.button on howto use and configure the hardware button(s). Here, we merely name the buttons, so we can use them in the above Howto.
Please fill in real values for this device, then remove the EXAMPLEs
The Linksys E5600 has the following buttons:
| BUTTON | Event |
|---|---|
| EXAMPLE Reset | reset |
| EXAMPLE Secure Easy Setup | ses |
| EXAMPLE No buttons at all. | - |
Hardware
Info
Photos
Front:
Insert photo of front of the casing
Back:
Insert photo of back of the casing
Backside label:
Insert photo of backside label
Opening the case
→ Warranty
Describe what needs to be done to open the device, e.g. remove rubber feet, adhesive labels, screws, ...
- To remove the cover and open the device, do a/b/c
Main PCB:
Insert photo of PCB
Serial
→ port.serial general information about the serial port, serial port cable, etc.
How to connect to the Serial Port of this specific device:
Insert photo of PCB with markings for serial port
Replace EXAMPLE by real values.
| Serial connection parameters for Linksys E5600 @@Version@@ | EXAMPLE 115200, 8N1 |
|---|
JTAG
→ port.jtag general information about the JTAG port, JTAG cable, etc.
How to connect to the JTAG Port of this specific device:
Insert photo of PCB with markings for JTAG port
Bootloader mods
Hardware mods
None so far.
Bootlogs
OEM bootlog
OpenWrt bootlog
COPY HERE THE BOOTLOG ONCE OPENWRT IS INSTALLED AND RUNNING
Notes
Space for additional notes, links to forum threads or other resources.
