Techdata: ASUS ZenWiFi BT8
Usage
- IMPORTANT : Edit this page only via the LEFT edit button below the dataentry box
- After editing, please enter a short summary of your edit:
- Which field has been changed? (e.g. Ethernet 100M ports)
- What have you done? (e.g. added / updated / deleted / ...)
- Why has it been changed? / What is your datasource? (acc. devicepage / wikidevi / forum ...)
- Example summary: Ethernet 100M ports updated according wikidevi
- For adding new dropdown values, Contact an OpenWrt wiki admin (tmomas)
- For conventions / allowed values, see below
- For general usage help, see Dataentry template background
- Searching for pure technical facts? See table below.
- Searching for installation instructions, bootlogs, other info? See link to Device Page below.
Dataentry
- Device Type:
- WiFi Router
- Brand:
- ASUS
- Model:
- ZenWiFi BT8
- Version:
- A1, B1
- FCCID:
- https://fcc.io/MSQ-RTBE7J00
- Availability:
- Available 2025
- Where available:
- amazon.com, asus.com
- Supported Since Commit:
- https://git.openwrt.org/?p=openwrt/openwrt.git;a=commit;h=2cd79733ccab7775f575258c3c52323a99fbd793
- Supported Since Rel:
- 25.12.0
- Supported Current Rel:
- 25.12.2
- Unsupported Functions:
- 6GHz in USA
- Gluon support:
- unknown
- Target:
- mediatek
- Subtarget:
- filogic
- Package architecture:
- aarch64_cortex-a53
- Bootloader:
- U-Boot
- CPU:
- MediaTek MT7988DV
- CPU Cores:
- 4
- CPU MHz:
- 1800
- Flash MB:
- 128NAND
- RAM MB:
- 1024
- Ethernet 100M ports:
- -
- Ethernet 1Gbit ports:
- 2
- Ethernet 2.5Gbit ports:
- 2
- Ethernet 5Gbit ports:
- -
- Ethernet 10Gbit ports:
- -
- SFP ports:
- -
- SFP+ ports:
- -
- Switch:
- MediaTek MT7988DV
- VLAN:
- Yes
- Modem:
- -
- Comments network ports:
- MaxLinear GPY211C 2.5Gbe PHY
- WLAN Hardware:
- MediaTek MT7995AV, MT7975N, MT7977BN, MT7977IA
- WLAN 2.4GHz:
- b/g/n/ax
- WLAN 5.0GHz:
- a/n/ac/ax
- WLAN 6.0GHz:
- ax/be
- WLAN 60.0GHz:
- -
- WLAN Comments:
- MIMO: 2.4GHz: 2x2:2, 5GHz: 3X3:3, 6GHz: 3X3:3
- WLAN driver:
- mt76
- Detachable Antennas:
- -
- Bluetooth:
- -
- miniPCI ports:
- -
- USB ports:
- 1x 3.0
- SATA ports:
- -
- Video ports:
- -
- Audio ports:
- -
- Phone ports:
- -
- Serial:
- Yes
- Serial connection parameters:
- ¿
- Serial connection voltage:
- ¿
- JTAG:
- ¿
- LED count:
- 1
- Button count:
- 2
- GPIOs:
- ¿
- Power Supply:
- 12 VDC, 3A via barrel
- Outdoor:
- No
- OpenVPN performance:
- ¿
- Wireguard performance:
- ¿
- Device Page:
- zenwifi_bt8
- OWrt Forum Topic URL:
- https://forum.openwrt.org/t/support-for-asus-zenwifi-bt8-tri-band-wifi7-mediatek-mt7988/220023/
- Forum search:
- ZenWiFi BT8
- Git search:
- ZenWiFi BT8
- WikiDevi URL:
- https://wikidevi.wi-cat.ru/ASUS_ZenWiFi_BE14000_(BT8)
- WikiDevi ID:
- ASUS_ZenWiFi_BE14000_(BT8)
- OEM Device Homepage URL:
- https://www.asus.com/us/networking-iot-servers/whole-home-mesh-wifi-system/zenwifi-wifi-systems/asus-zenwifi-bt8/
- Firmware OEM Stock URL:
- https://www.asus.com/us/networking-iot-servers/whole-home-mesh-wifi-system/zenwifi-wifi-systems/asus-zenwifi-bt8/helpdesk_bios?model2Name=ASUS-ZenWiFi-BT8
- Firmware OpenWrt Install URL:
- https://downloads.openwrt.org/releases/25.12.2/targets/mediatek/filogic/openwrt-25.12.2-mediatek-filogic-asus_zenwifi-bt8-factory.bin
- Firmware OpenWrt Upgrade URL:
- https://downloads.openwrt.org/releases/25.12.2/targets/mediatek/filogic/openwrt-25.12.2-mediatek-filogic-asus_zenwifi-bt8-squashfs-sysupgrade.bin
- Firmware OpenWrt snapshot Install URL:
- https://downloads.openwrt.org/snapshots/targets/mediatek/filogic/openwrt-mediatek-filogic-asus_zenwifi-bt8-factory.bin
- Firmware OpenWrt snapshot Upgrade URL:
- https://downloads.openwrt.org/snapshots/targets/mediatek/filogic/openwrt-mediatek-filogic-asus_zenwifi-bt8-squashfs-sysupgrade.bin
- Installation method(s):
- see forum
- Comment installation:
- U-boot mod available, see forum
- Recovery method(s):
- see forum
- Comment recovery:
- See device page

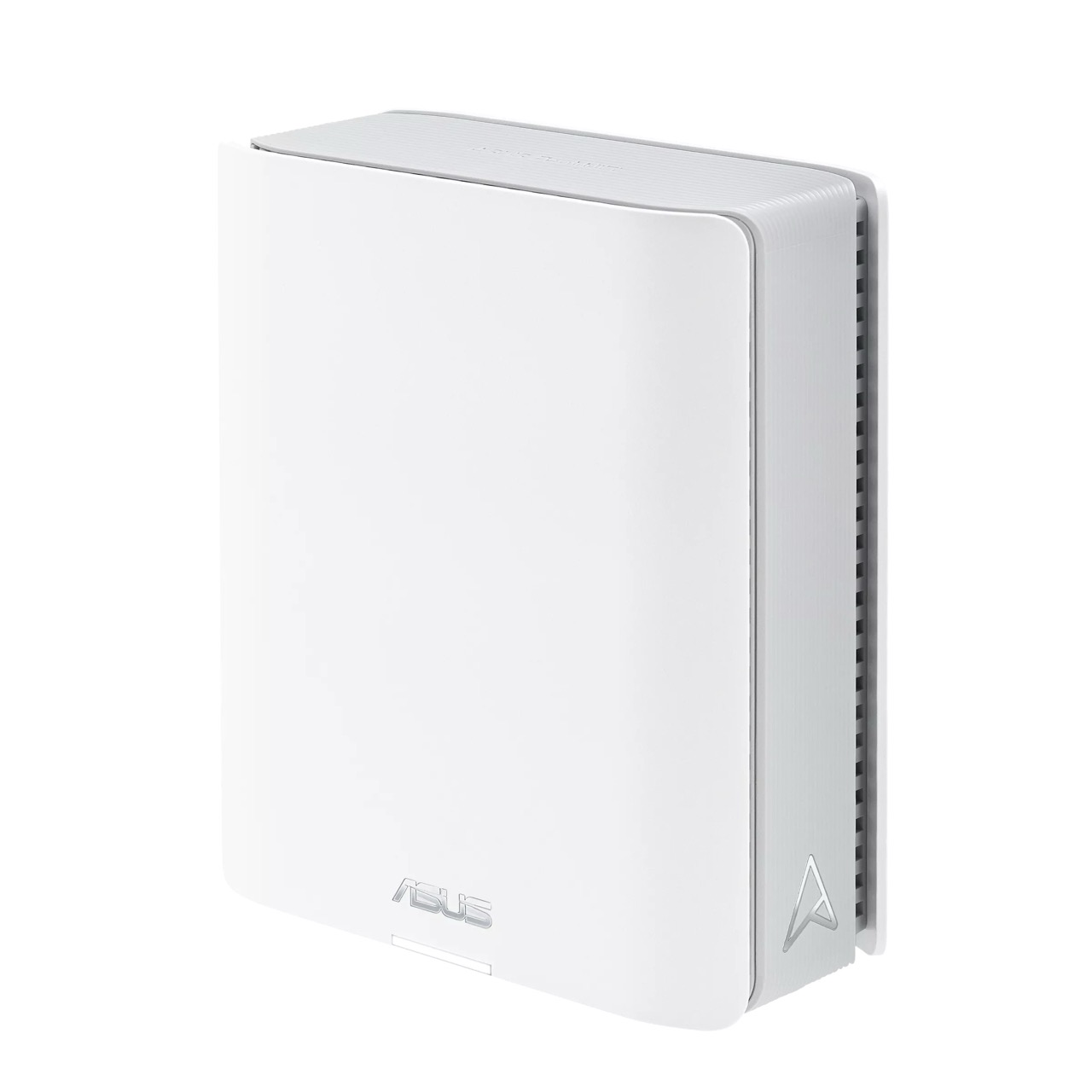

- Picture:
- Comments:
- MT7988DV has 3 cores, not an option in ToH
